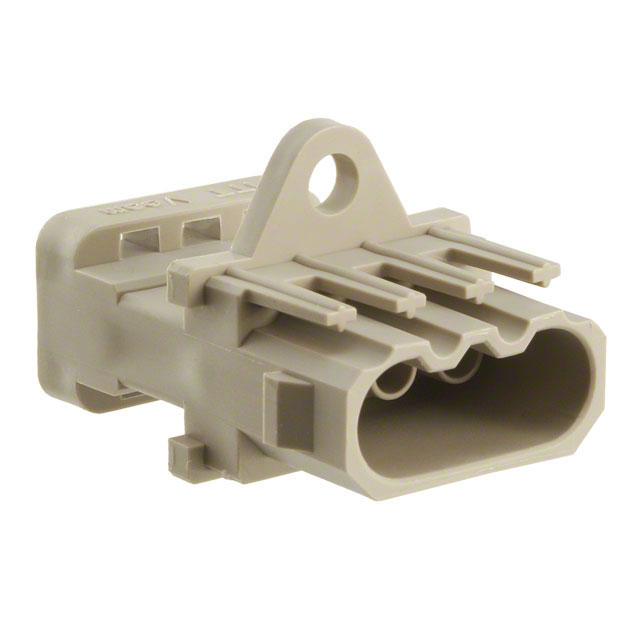

VRPC-03P-20

Active

ITT Cannon, LLC

CONN RCPT HSG 3POS 6.00MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSG 3POS 6.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Connector Type	Mounting Type	Insulation Material	Contact Termination	Fastening Type	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch [x]	Pitch [x]	Note	Features
ITT Cannon, LLC VRPC-12S-20	Female Socket	Plug	Free Hanging (In-Line)	Thermoplastic	Crimp	Locking Ramp	3	100 °C	-40 °C	12	0.236 in	6 mm	Contacts Not Included
ITT Cannon, LLC VRPC-03P-20	Male Pin	Receptacle		Thermoplastic	Crimp	Locking Ramp	1	100 °C	-40 °C		0.236 in	6 mm	Contacts Not Included
ITT Cannon, LLC VRPC-03P-67	Male Pin	Receptacle		Thermoplastic	Crimp	Locking Ramp	1	100 °C	-40 °C		0.236 in	6 mm	Contacts Not Included	IP67
ITT Cannon, LLC VRPC-12P-67	Male Pin	Receptacle		Thermoplastic	Crimp	Locking Ramp	3	100 °C	-40 °C	12	0.236 in	6 mm	Contacts Not Included	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Rectangular Connectors - Housings Receptacle 0.236" (6.00mm)
