826944-2

Active

TE Connectivity AMP Connectors

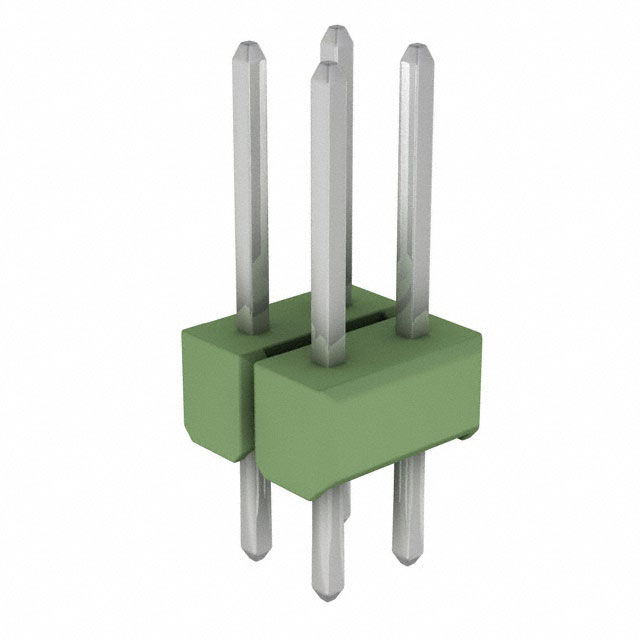

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

826944-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826944-2	826944 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	78.7 µin	78.7 µin
Contact Finish Thickness - Mating	2 µm	2 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	8 mm	8 mm
Contact Length - Mating	0.315 in	0.315 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4 - 10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.551 "	0.551 "
Overall Contact Length	14 mm	14 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826944 Series

CONN HEADER VERT 4POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Style	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Material Flammability Rating	Contact Material	Contact Shape	Contact Type	Overall Contact Length	Overall Contact Length
TE Connectivity AMP Connectors 826944-2	2 çm	78.7 çin	Tin	Through Hole	All	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	8 mm	0.315 in	Unshrouded	4	2.54 mm	0.1 in	2	78.7 µin	2 µm	Solder	Green	Board to Board, Cable	-65 ░C	105 ░C	Breakaway, Header	UL94 V-0	Copper Alloy	Square	Male Pin	0.551 "	14 mm
TE Connectivity AMP Connectors 826944-3	2 çm	78.7 çin	Tin	Through Hole	All	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	8 mm	0.315 in	Unshrouded	6	2.54 mm	0.1 in	2	78.7 µin	2 µm	Solder	Green	Board to Board, Cable	-65 ░C	105 ░C	Breakaway, Header	UL94 V-0	Copper Alloy	Square	Male Pin	0.551 "	14 mm
TE Connectivity AMP Connectors 826944-5	2 çm	78.7 çin	Tin	Through Hole	All	5 A	Polybutylene Terephthalate (PBT)	3.2 mm	0.126 in	0.1 in	2.54 mm	Push-Pull	8 mm	0.315 in	Unshrouded	10	2.54 mm	0.1 in	2	78.7 µin	2 µm	Solder	Green	Board to Board, Cable	-65 ░C	105 ░C	Breakaway, Header	UL94 V-0	Copper Alloy	Square	Male Pin	0.551 "	14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4500	$ 0.25

Description

General part information

826944 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
