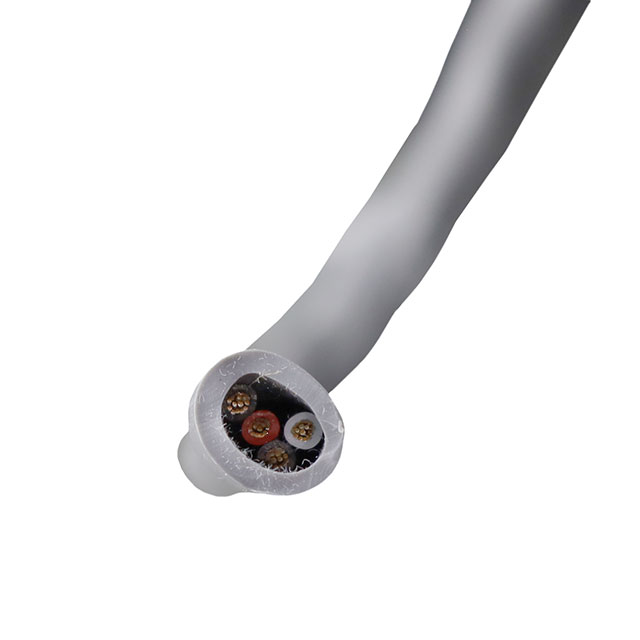

9156 060500

Active

Belden Inc.

MULTI-PAIR 4COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9156 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	8.46 mm
Jacket (Insulation) Diameter [diameter]	0.333 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket Color	Conductor Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors
Belden Inc. 9156 060500	Chrome	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Multi-Pair	18 AWG	-20 C	80 C	500 '	152.4 m	300 V	16	30 AWG	Audio Control Instrumentation	UL Style 2464	8.46 mm	0.333 in	4
Belden Inc. 9156 060U500	Chrome	Copper Tinned	Poly-Vinyl Chloride (PVC)	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Multi-Pair	18 AWG	-20 C	80 C	500 '	152.4 m	300 V	16	30 AWG	Audio Control Instrumentation	UL Style 2464	8.46 mm	0.333 in	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 2.84

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 18 AWG 500.0' (152.4m)
