0818807

Active

Phoenix Contact

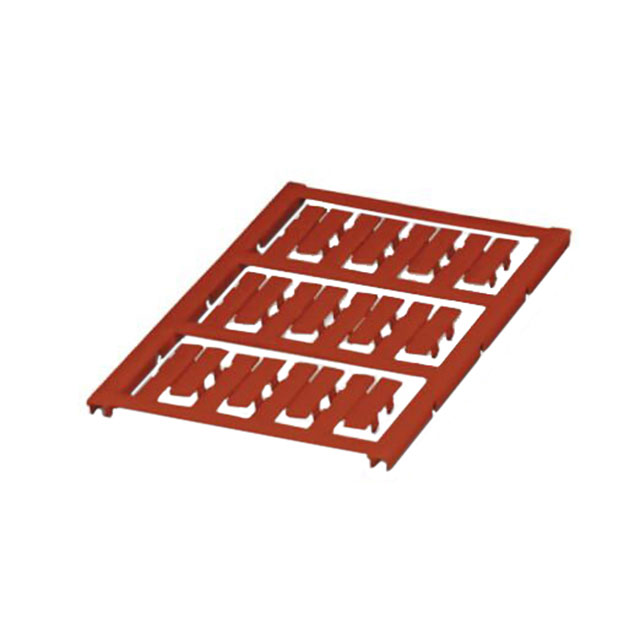

WIRE MARKER CLIP-ON 23MM RED

Deep-Dive with AI

Search across all available documentation for this part.

0818807

Active

Phoenix Contact

WIRE MARKER CLIP-ON 23MM RED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 3.29

Description

General part information

UC-WMC Series

Wire Marker, Clip-On 0.91" W (23.0mm) Red Polyamide (PA), Nylon

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0818807	UC-WMC Series

	-	-
Cable Diameter	-	4.4 - 7.5 mm
Cable Diameter	-	4.2 mm
Cable Diameter	-	5.6 mm
Cable Diameter	-	0.165 - 0.22 in
Cable Diameter [Max] [diameter]	0.122 in	0.122 - 0.295 in
Cable Diameter [Max] [diameter]	3.1 mm	3.1 mm
Cable Diameter [Min] [diameter]	1.9 mm	1.9 - 5 mm
Cable Diameter [Min] [diameter]	0.075 in	0.075 - 0.197 in
Color	Red	Yellow, White, Red, Green, Blue
Label Size	-	30 mm
Label Size	-	8 mm
Label Size	-	1.18 in
Label Size	-	0.31 in
Label Type	-	Standard
Legend	Blank	Blank, Custom
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polyamide
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	-	0.16 - 30 in
Size	-	4 - 23 mm
Size	-	0.16 - 8 mm
Size	-	4 - 15 mm
Size	-	23 - 30 mm
Size	-	0.91 - 1.18 in
Size	-	0.31 in
Size	-	8 mm
Type	Wire Marker, Clip-On	Wire Marker, Clip-On

UC-WMC Series

WIRE MARKER CLIP-ON 15MM YELLOW

Part	Legend	Type	Size [x]	Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Material	Color	Size [y]	Cable Diameter [diameter]	Cable Diameter [diameter]	Cable Diameter [diameter]	Size [y]	Size [custom]	Size [custom]	Cable Diameter [Max] [diameter]	Size [custom]	Size [custom]
Phoenix Contact 0818836	Blank	Wire Marker, Clip-On	0.59 in	15 mm	-40 °C	120 °C	4.4 mm	0.11 in	2.8 mm	0.173 in	Polyamide (PA), Nylon	Yellow
Phoenix Contact 0827015	Custom	Wire Marker, Clip-On	1.18 in, 30 mm		-40 °C	120 °C					Polyamide (PA), Nylon		0.31 ", 8 mm	4.2 mm	5.6 mm	0.165 in, 0.22 in
Phoenix Contact 0818182	Blank	Wire Marker, Clip-On	0.59 in	15 mm	-40 °C	120 °C	4.4 mm	0.11 in	2.8 mm	0.173 in	Polyamide (PA), Nylon	White	0.22 in				5.5 mm
Phoenix Contact 0819644	Blank	Wire Marker, Clip-On			-40 °C	120 °C		0.075 in	1.9 mm	0.122 in	Polyamide (PA), Nylon	Yellow						30 mm	1.18 in	3.1 mm
Phoenix Contact 0818218	Blank	Wire Marker, Clip-On	0.91 in	23 mm	-40 °C	120 °C		0.075 in	1.9 mm	0.122 in	Polyamide (PA), Nylon	White	0.16 in				4 mm			3.1 mm
Phoenix Contact 0823724	Blank	Wire Marker, Clip-On			-40 °C	120 °C	7.5 mm	0.197 in	5 mm	0.295 in	Polyamide (PA), Nylon							30 mm	1.18 in
Phoenix Contact 0825399	Blank	Wire Marker, Clip-On	1.18 in, 30 mm		-40 °C	120 °C					Polyamide (PA), Nylon		0.31 ", 8 mm	4.2 mm	5.6 mm	0.165 in, 0.22 in
Phoenix Contact 0818179	Blank	Wire Marker, Clip-On			-40 °C	120 °C	7.5 mm	0.197 in	5 mm	0.295 in	Polyamide (PA), Nylon	White						23 mm	0.91 in		0.31 in	8 mm
Phoenix Contact 0820882	Blank	Wire Marker, Clip-On			-40 °C	120 °C	4.4 mm	0.11 in	2.8 mm	0.173 in	Polyamide (PA), Nylon	Red						30 mm	1.18 in
Phoenix Contact 0825384	Blank	Wire Marker, Clip-On			-40 °C	120 °C					Polyamide (PA), Nylon	Green		4.2 mm	5.6 mm	0.165 in, 0.22 in
