0818179

Active

Phoenix Contact

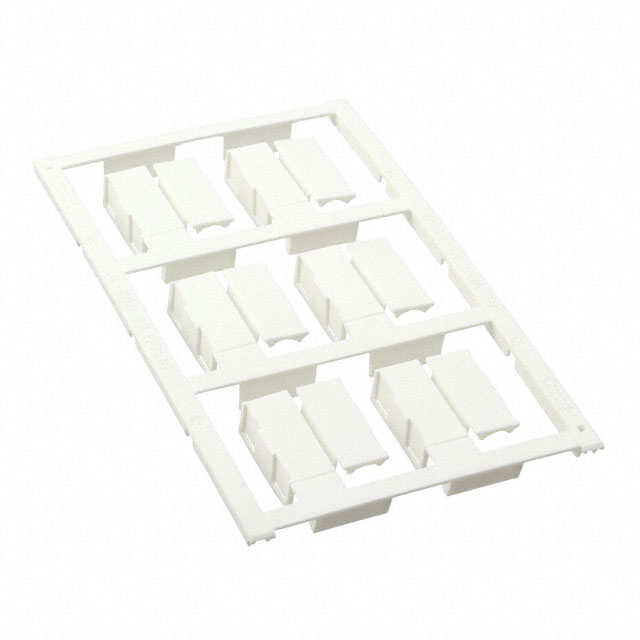

WIRE MARKR CLP 23X8MM 1SHT=6LBLS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0818179

Active

Phoenix Contact

WIRE MARKR CLP 23X8MM 1SHT=6LBLS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.81

Description

General part information

UC-WMC Series

Wire Marker, Clip-On 0.91" W x 0.31" L (23.0mm x 8.0mm) White Polyamide (PA), Nylon

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0818179	UC-WMC Series

	-	-
Cable Diameter	-	4.2 mm
Cable Diameter	-	5.6 mm
Cable Diameter	-	0.165 - 0.22 in
Cable Diameter	-	3.1 mm
Cable Diameter [Max] [diameter]	7.5 mm	4.4 - 7.5 mm
Cable Diameter [Max] [diameter]	0.295 in	0.122 - 0.295 in
Cable Diameter [Min] [diameter]	0.197 in	0.075 - 0.197 in
Cable Diameter [Min] [diameter]	5 mm	1.9 - 5 mm
Color	White	Yellow, White, Red, Green, Blue
Label Size	-	30 mm
Label Size	-	8 mm
Label Size	-	1.18 in
Label Size	-	0.31 in
Label Type	-	Standard
Legend	Blank	Blank, Custom
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polyamide
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	-	0.16 - 30 in
Size	-	4 - 23 mm
Size	-	0.16 - 8 mm
Size	-	4 - 15 mm
Size [custom]	0.31 in	0.31 in
Size [custom]	8 mm	8 mm
Size [custom]	0.91 in	0.91 - 1.18 in
Size [custom]	23 mm	23 - 30 mm
Type	Wire Marker, Clip-On	Wire Marker, Clip-On

UC-WMC Series

WIRE MARKER CLIP-ON 15MM YELLOW

Part	Legend	Type	Size [x]	Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Material	Color	Size [y]	Cable Diameter [diameter]	Cable Diameter [diameter]	Cable Diameter [diameter]	Size [y]	Size [custom]	Size [custom]	Cable Diameter [Max] [diameter]	Size [custom]	Size [custom]
Phoenix Contact 0818836	Blank	Wire Marker, Clip-On	0.59 in	15 mm	-40 °C	120 °C	4.4 mm	0.11 in	2.8 mm	0.173 in	Polyamide (PA), Nylon	Yellow
Phoenix Contact 0827015	Custom	Wire Marker, Clip-On	1.18 in, 30 mm		-40 °C	120 °C					Polyamide (PA), Nylon		0.31 ", 8 mm	4.2 mm	5.6 mm	0.165 in, 0.22 in
Phoenix Contact 0818182	Blank	Wire Marker, Clip-On	0.59 in	15 mm	-40 °C	120 °C	4.4 mm	0.11 in	2.8 mm	0.173 in	Polyamide (PA), Nylon	White	0.22 in				5.5 mm
Phoenix Contact 0819644	Blank	Wire Marker, Clip-On			-40 °C	120 °C		0.075 in	1.9 mm	0.122 in	Polyamide (PA), Nylon	Yellow						30 mm	1.18 in	3.1 mm
Phoenix Contact 0818218	Blank	Wire Marker, Clip-On	0.91 in	23 mm	-40 °C	120 °C		0.075 in	1.9 mm	0.122 in	Polyamide (PA), Nylon	White	0.16 in				4 mm			3.1 mm
Phoenix Contact 0823724	Blank	Wire Marker, Clip-On			-40 °C	120 °C	7.5 mm	0.197 in	5 mm	0.295 in	Polyamide (PA), Nylon							30 mm	1.18 in
Phoenix Contact 0825399	Blank	Wire Marker, Clip-On	1.18 in, 30 mm		-40 °C	120 °C					Polyamide (PA), Nylon		0.31 ", 8 mm	4.2 mm	5.6 mm	0.165 in, 0.22 in
Phoenix Contact 0818179	Blank	Wire Marker, Clip-On			-40 °C	120 °C	7.5 mm	0.197 in	5 mm	0.295 in	Polyamide (PA), Nylon	White						23 mm	0.91 in		0.31 in	8 mm
Phoenix Contact 0820882	Blank	Wire Marker, Clip-On			-40 °C	120 °C	4.4 mm	0.11 in	2.8 mm	0.173 in	Polyamide (PA), Nylon	Red						30 mm	1.18 in
Phoenix Contact 0825384	Blank	Wire Marker, Clip-On			-40 °C	120 °C					Polyamide (PA), Nylon	Green		4.2 mm	5.6 mm	0.165 in, 0.22 in
