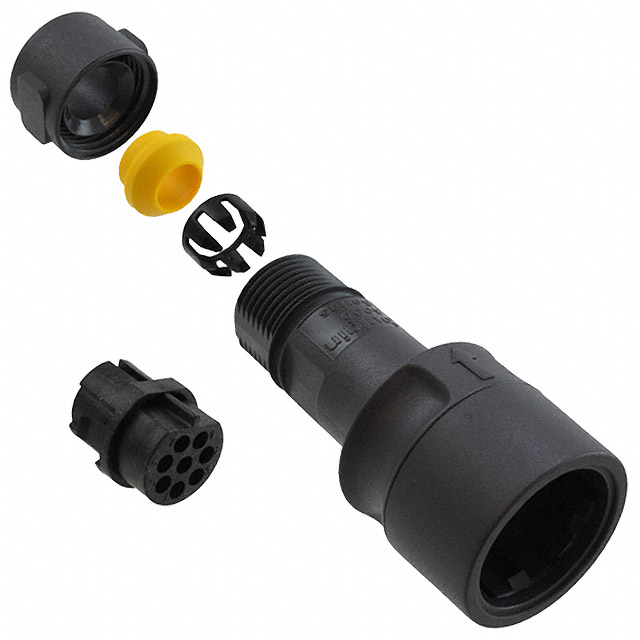

PXP6010/08S/CR/0709
ActiveBULGIN LIMITED
CONN PLG HSG FMALE 8POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
PXP6010/08S/CR/0709
ActiveBULGIN LIMITED
CONN PLG HSG FMALE 8POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXP6010/08S/CR/0709 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Housing Color | Gray |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free |
| Shielding | Unshielded |
| Type | For Female Sockets |
PXP6010 Series
| Part | Material Flammability Rating | Primary Material | Type | Ingress Protection | Features | Contact Shape | Shielding | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Shell Material | Mounting Type | Note | Connector Type | Number of Positions | Orientation | Fastening Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Contact Material | Color | Voltage Rating | Current Rating (Amps) | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | UL94 V-0 | Plastic | For Female Sockets | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | 2 | Keyed | Push-Twist | |||||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Female Sockets | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | Keyed | Push-Twist | 3 | 1 | 2 | |||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Female Sockets | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | 22 | Keyed | Push-Twist | |||||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Male Pins | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | 22 | Keyed | Push-Twist | |||||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Male Pins | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | Keyed | Push-Twist | 3 | 1 | 2 | |||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Female Sockets | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | 8 | Keyed | Push-Twist | |||||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Female Sockets | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | 22 | Keyed | Push-Twist | |||||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Male Pins | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | 22 | Keyed | Push-Twist | |||||||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Coupling Nut UV Resistant | Unshielded | -40 °C | 120 °C | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Receptacle Female Sockets | 2 | Keyed | Push-Twist | Brass | Gray | 277 VAC/DC | 16 A | 9 mm | 0.394 in | 10 mm | 0.354 in | Nickel | Screw | ||||||||
BULGIN LIMITED | UL94 V-0 | Plastic | For Female Sockets | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Backshell Coupling Nut | Circular | Unshielded | Crimp and Solder Cup | -40 °C | 120 °C | Gray | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Free Hanging (In-Line) | Contacts Not Included | Plug Housing | 16 | Keyed | Push-Twist |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.49 | |
| 10 | $ 15.71 | |||
| 25 | $ 14.73 | |||
| 50 | $ 14.03 | |||
| 100 | $ 13.36 | |||
| 250 | $ 12.52 | |||
| 500 | $ 11.92 | |||
Description
General part information
PXP6010 Series
8 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
