PU-16533-C

Active

BUD INDUSTRIES

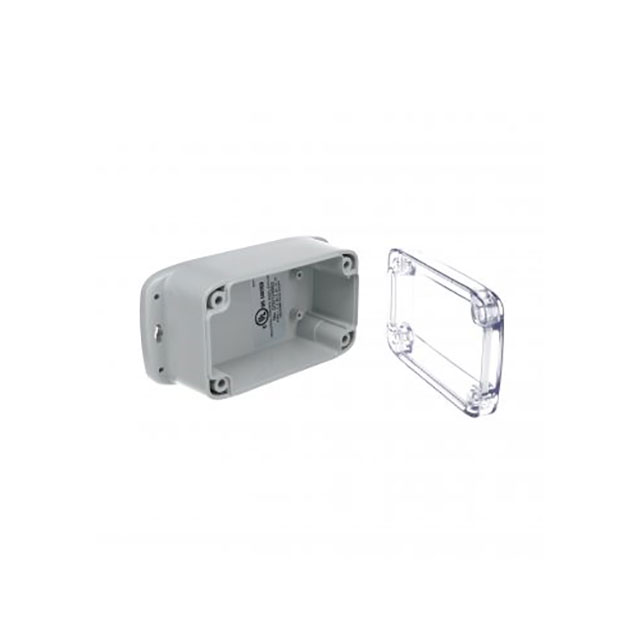

ELECTRICAL ENCLOSURES IP68/NEMA 6P PLASTIC ENCLOSURE, FLANGES AND CLEAR COVER (4.5 X 2.6 X 2.1 IN)

Search across all available documentation for this part.

Active

BUD INDUSTRIES

ELECTRICAL ENCLOSURES IP68/NEMA 6P PLASTIC ENCLOSURE, FLANGES AND CLEAR COVER (4.5 X 2.6 X 2.1 IN)

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PU-16533-C	PU Series

Area (L x W)	11.8 in²	11.8 - 22.7 in²
Area (L x W)	76 cm²	76 - 147 cm²
Color	Gray	Gray
Container Type	Enclosure	Enclosure
Design	Cover Included	Cover Included
For Use With/Related Products	-	PU Series
Height	-	2.44 in
Height [z]	2.05 in	2.05 in
Height [z]	52.07 mm	52.07 - 61.98 mm
Material	Plastic, Polycarbonate	Plastic, Polycarbonate, Metal, Aluminum
Material Flammability Rating	UL94 V-0	UL94 V-0
Ratings	4X, 12, NEMA 1, IP68, 6P, 13, 6, 4, 2	4X, 12, NEMA 1, IP68, 6P, 13, 6, 4, 2
Size / Dimension	-	0.06 "
Size / Dimension	-	1.52 mm
Size / Dimension [x]	4.5 in	2.6 - 5.5 in
Size / Dimension [x]	114.3 mm	66.04 - 139.7 mm
Size / Dimension [y]	2.63 in	2.6 - 4.13 in
Size / Dimension [y]	66.8 mm	66.04 - 104.9 mm
Thickness	0.12 in	0.12 in
Thickness	3.05 mm	3.05 mm
Type	-	Panel, Inner

Electrical Enclosures IP68/NEMA 6P Plastic Enclosure, Flanges and Clear Cover (4.5 X 2.6 X 2.1 In)

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness	Thickness	Ratings	Design	Material	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Material Flammability Rating	Container Type	Color	Size / Dimension [z]	Size / Dimension [z]	For Use With/Related Products	Type	Height [z]
BUD INDUSTRIES PU-16536	104.9 mm	4.13 in	5.5 in	139.7 mm	0.12 in	3.05 mm	12, 13, 2, 4, 4X, 6, 6P, IP68, NEMA 1	Cover Included	Plastic, Polycarbonate	2.44 in	61.98 mm	22.7 in²	147 cm²	UL94 V-0	Enclosure	Gray
BUD INDUSTRIES PUX-16532	66.04 mm	2.6 "	2.6 in	66.04 mm					Aluminum, Metal								0.06 "	1.52 mm	PU Series	Panel, Inner
BUD INDUSTRIES PU-16533-C	66.8 mm	2.63 in	4.5 in	114.3 mm	0.12 in	3.05 mm	12, 13, 2, 4, 4X, 6, 6P, IP68, NEMA 1	Cover Included	Plastic, Polycarbonate		52.07 mm	11.8 in²	76 cm²	UL94 V-0	Enclosure	Gray					2.05 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electrical Enclosures IP68/NEMA 6P Plastic Enclosure, Flanges and Clear Cover (4.5 X 2.6 X 2.1 In)

Technical documentation and resources
