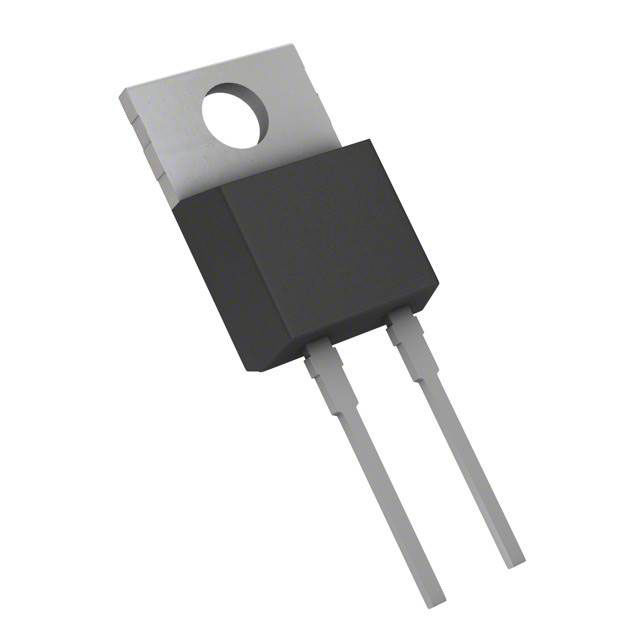

PWR220T-20-15R0J

Active

Bourns Inc.

POWER RESISTOR 5% /TUBE PACKAGING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PWR220T-20-15R0J

Active

Bourns Inc.

POWER RESISTOR 5% /TUBE PACKAGING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWR220T-20-15R0J

Composition	Thick Film
Features	Current Sense, Automotive AEC-Q200, Pulse Withstanding
Height - Seated (Max) [Max]	0.575 in
Height - Seated (Max) [Max]	14.6 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-2, Variant
Power (Watts)	20 W
Resistance	15 Ohms
Size / Dimension [x]	0.398 in
Size / Dimension [x]	10.1 mm
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Supplier Device Package	TO-220-2
Temperature Coefficient	100 ppm/°C
Tolerance	5 %

PWR220T Series

...

Part	Package / Case	Tolerance	Power (Watts)	Number of Terminations	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Resistance	Composition	Temperature Coefficient	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]
Bourns Inc. PWR220T-35-47R0J	TO-220-2 Variant	5 %	35 W	2	0.575 in	14.6 mm	TO-220-2	47 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-5602F	TO-220-2 Variant	1 %	20 W	2	0.575 in	14.6 mm	TO-220-2	56 kOhms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-39R0F	TO-220-2 Variant	1 %	20 W	2	0.575 in	14.6 mm	TO-220-2	39 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-35-5R00F	TO-220-2 Variant	1 %	35 W	2	0.575 in	14.6 mm	TO-220-2	5 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-56R0F	TO-220-2 Variant	1 %	20 W	2	0.575 in	14.6 mm	TO-220-2	56 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-27R0J	TO-220-2 Variant	5 %	20 W	2	0.575 in	14.6 mm	TO-220-2	27 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-15R0J	TO-220-2 Variant	5 %	20 W	2	0.575 in	14.6 mm	TO-220-2	15 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-30R0J	TO-220-2 Variant	5 %	20 W	2	0.575 in	14.6 mm	TO-220-2	30 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-3300J	TO-220-2 Variant	5 %	20 W	2	0.575 in	14.6 mm	TO-220-2	330 Ohms	Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C
Bourns Inc. PWR220T-20-3002J	TO-220-2 Variant	5 %	20 W	2	0.575 in	14.6 mm	TO-220-2		Thick Film	100 ppm/°C	Automotive AEC-Q200 Current Sense Pulse Withstanding	0.157 in	0.398 in	10.1 mm	4 mm	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 2.04
Newark	Each	100	$ 2.25
		500	$ 2.05
		1000	$ 1.81
		2500	$ 1.68

Description

General part information

PWR220T Series

15 Ohms ±5% 20W Through Hole Resistor TO-220-2, Variant Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
