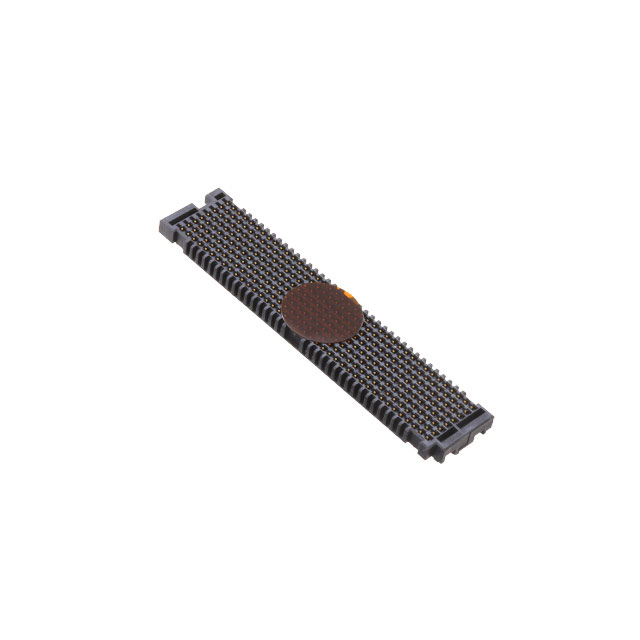

LPAF-40-03.5-S-08-2-K-TR - LPAF-40-03.5-S-08-2-K-TR

LPAF-40-03.5-S-08-2-K-TR

Active
Samtec Inc.

CONN ARRAY RCPT 320POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENProduct Change Notice EN+5
LPAF-40-03.5-S-08-2-K-TR - LPAF-40-03.5-S-08-2-K-TR

LPAF-40-03.5-S-08-2-K-TR

Active
Samtec Inc.

CONN ARRAY RCPT 320POS SMD GOLD

Deep-Dive with AI

DocumentsTechnical Data Sheet ENProduct Change Notice EN+5

Technical Specifications

Parameters and characteristics for this part

SpecificationLPAF-40-03.5-S-08-2-K-TR
Connector TypeFemale Sockets, Array
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesPick and Place, Board Guide
Height Above Board0.13 in
Height Above Board3.3 mm
Mated Stacking Heights4.5 mm, 5 mm
Mounting TypeSurface Mount
Number of Positions320
Number of Rows8
Pitch [x]0.05 in
Pitch [x]1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 29.57
10$ 28.00
25$ 26.94
50$ 26.29
100$ 21.45
Tape & Reel (TR) 325$ 19.84
650$ 16.40
NewarkEach 1$ 29.69
10$ 26.87
25$ 25.77
50$ 24.04
100$ 23.25
250$ 22.00
500$ 21.37

Description

General part information

LPAF-40 Series

320 Position Connector Array, Female Sockets Surface Mount Gold
