PT06W-12-3S
ActiveAmphenol Industrial Operations

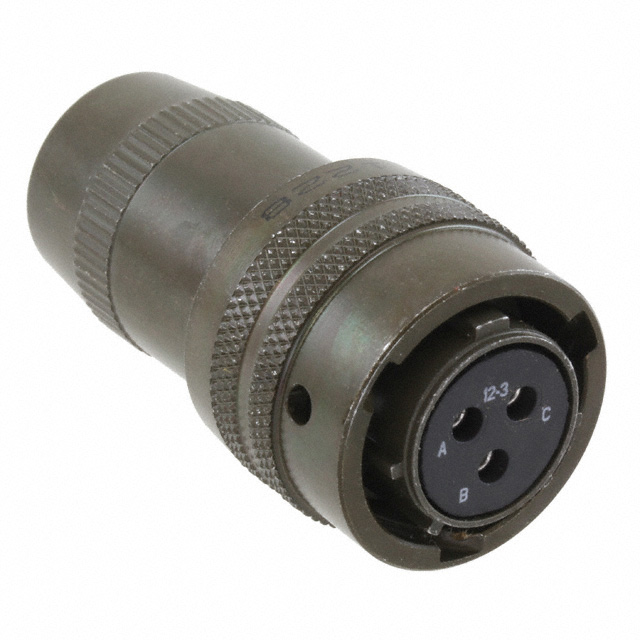

CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT06W-12-3S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT06W-12-3S | PT06W Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum, Electroless Nickel |
| Color | Olive Drab | Olive Drab, Silver |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 4 - 18 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Electroless Nickel |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 12-3 | 12-3, 8-4 |
| Shell Size - Insert | - | 10 - 14 |
| Shell Size - Insert | - | 18 - 98 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.24 | |
| 10 | $ 47.02 | |||
| 25 | $ 45.21 | |||
| 50 | $ 43.70 | |||
| 100 | $ 41.29 | |||
PT06W Series
CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Contact Material | Backshell Material, Plating | Features | Shell Material | Shell Finish | Orientation | Shell Size - Insert | Color | Contact Finish - Mating | Shielding | Mounting Type | Qualification | Primary Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Applications | Fastening Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT06W-12-3S | Copper Alloy | Aluminum, Olive Drab Cadmium | Backshell, Coupling Nut | Aluminum | Olive Drab Chromate over Cadmium | N | 12-3 | Olive Drab | Gold | Unshielded | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Metal | Female Sockets, Plug | -55 °C | 125 °C | Neoprene | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | |||
Amphenol Industrial Operations PT06W-14-18P(023) | Copper Alloy | Aluminum, Electroless Nickel | Backshell, Coupling Nut | Aluminum | Electroless Nickel | N | Silver | Gold | Unshielded | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Metal | Male Pins, Plug | -55 °C | 125 °C | Neoprene | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | 14 | 18 | 18 | |
Amphenol Industrial Operations PT06W-10-98S | Copper Alloy | Aluminum, Olive Drab Cadmium | Backshell, Coupling Nut | Aluminum | Olive Drab Chromate over Cadmium | N | Olive Drab | Gold | Unshielded | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Metal | Female Sockets, Plug | -55 °C | 125 °C | Neoprene | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | 10 | 98 | 6 | |
Amphenol Industrial Operations PT06W-12-10S(571) | Copper Alloy | Backshell, Coupling Nut | N | Unshielded | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Female Sockets, Plug | -55 °C | 125 °C | Neoprene | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | 10 | |||||||||
Amphenol Industrial Operations PT06W-8-4S | Copper Alloy | Aluminum, Olive Drab Cadmium | Backshell, Coupling Nut | Aluminum | Olive Drab Chromate over Cadmium | N | 8-4 | Olive Drab | Gold | Unshielded | Free Hanging (In-Line) | MIL-DTL-26482 Series I | Metal | Female Sockets, Plug | -55 °C | 125 °C | Neoprene | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | 4 |
Description
General part information
PT06W Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
