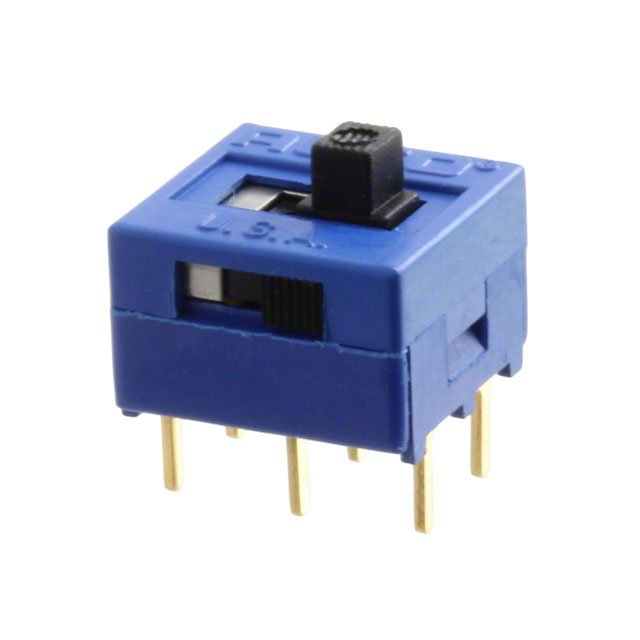

MSSA211NG

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 0.4VA 20V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	MSSA211NG

Actuator Length [x]	2.79 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Through Hole
Operating Force	600 gf
Switch Function	On-On
Switch Travel	3.05 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Mounting Type	Voltage Rating - AC	Electrical Life	Contact Timing	Voltage Rating - DC	Current Rating (Amps)	Contact Material	Switch Travel	Mechanical Life	Actuator Type	Contact Finish	Switch Function	Actuator Material	Actuator Length [x]	Features	Termination Style	Operating Force	Circuit
TE Connectivity Raychem Cable Protection MSSA211NG	Through Hole	20 V	30000 Cycles	Non-Shorting	20 V	0.4 VA	Copper Alloy	3.05 mm	30000 Steps	Standard	Gold	On-On	Glass Filled Nylon Polyamide (PA)	2.79 mm	Epoxy Sealed Terminals	PC Pin	600 gf	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch DPDT Through Hole
