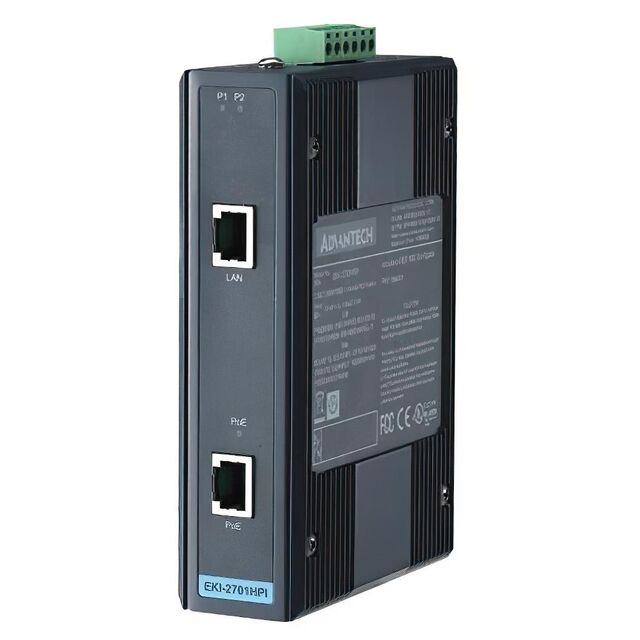

EKI-2701HPI-AE
ActiveAdvantech Corp
POE INJECTOR 55V 30W DIN RAIL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsEthernet Switch Selection Guide
EKI-2701HPI-AE
ActiveAdvantech Corp
POE INJECTOR 55V 30W DIN RAIL
Deep-Dive with AI
DocumentsEthernet Switch Selection Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | EKI-2701HPI-AE |
|---|---|
| Approval Agency | cULus, FCC, CE |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Features | IP30 |
| Input Connector | RJ45 |
| Mounting Type | DIN Rail |
| Number of Ports | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Connector | RJ45 |
| Power (Watts) - Per Port | 30 W |
| Size / Dimension [x] | 140 mm |
| Size / Dimension [x] | 5.51 " |
| Size / Dimension [y] | 3.74 " |
| Size / Dimension [y] | 95 mm |
| Size / Dimension [z] | 1.46 " |
| Size / Dimension [z] | 37 mm |
| Standard Number | 60068-2-6, 61000-4-8, 61000-4-5, 60068-2-27, 61000-4-4, 61000-4-6, 60068-2-32, 61000-4-3, 61000-4-2 |
| Type | Midspan Injector |
| Voltage - Input [Max] | 48 V |
| Voltage - Input [Min] | 24 VDC |
| Voltage - Output | 55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 348.74 | |
Description
General part information
EKI-2701 Series
55V Power Over Ethernet (POE) 2 Port Midspan Injector 10/100/1000 Mbps Data Rate
Documents
Technical documentation and resources
