RLB1314-101KL

Active

Bourns Inc.

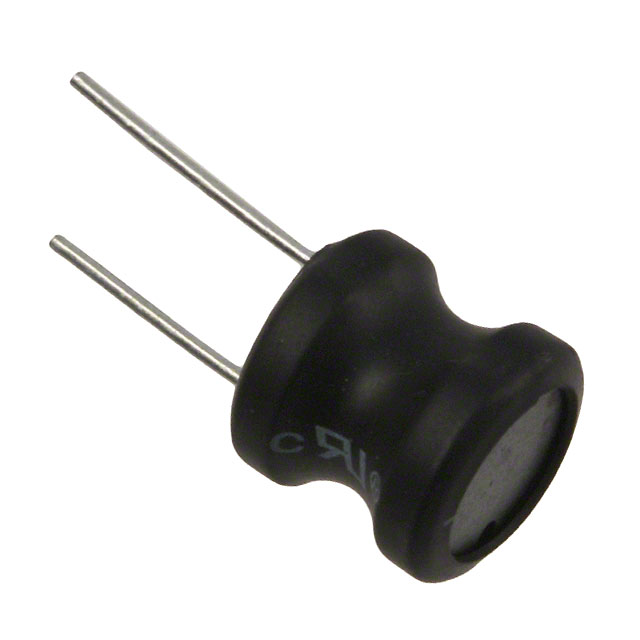

FIXED IND 100UH 1A 120 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RLB1314-101KL

Active

Bourns Inc.

FIXED IND 100UH 1A 120 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLB1314-101KL

Current Rating (Amps)	1 A
DC Resistance (DCR)	120 mOhm
Frequency - Self Resonant	5.4 MHz
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Inductance	100 µH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	70, 796 kHz
Shielding	Unshielded
Size / Dimension [diameter]	11.7 mm
Size / Dimension [diameter]	0.461 in
Tolerance	10 %
Type	Wirewound, Drum Core

RLB1314 Series

Part	Current Rating (Amps)	Type	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Shielding	Q @ Freq	Inductance	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Bourns Inc. RLB1314-222KL	0.21 A	Drum Core Wirewound	1.1 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	60 252 kHz	2.2 mH	2.9 Ohm
Bourns Inc. RLB1314-680KL	1.2 A	Drum Core Wirewound	6.7 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	2.52 MHz 80	68 µH	92 mOhm
Bourns Inc. RLB1314-221KL	0.68 A	Drum Core Wirewound	3.4 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	40 796 kHz	220 µH	250 mOhm
Bourns Inc. RLB1314-101KL	1 A	Drum Core Wirewound	5.4 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	70 796 kHz	100 µH		120 mOhm
Bourns Inc. RLB1314-331KL	0.55 A	Drum Core Wirewound	2.7 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	40 796 kHz	330 µH		420 mOhm
Bourns Inc. RLB1314-150ML	2.6 A	Drum Core Wirewound	19 MHz	13 mm	0.512 "	Ferrite	20 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	2.52 MHz 120	15 µH		19 mOhm
Bourns Inc. RLB1314-100KL	3.2 A	Drum Core Wirewound	26 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	2.52 MHz 140	10 µH	15 mOhm
Bourns Inc. RLB1314-6R8ML	3.9 A	Drum Core Wirewound	34 MHz	13 mm	0.512 "	Ferrite	20 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	7.96 MHz 80	6.8 µH		12 mOhm
Bourns Inc. RLB1314-102KL	0.31 A	Drum Core Wirewound	1.6 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	40 252 kHz	1 mH	1.3 Ohm
Bourns Inc. RLB1314-330KL	1.8 A	Drum Core Wirewound	10 MHz	13 mm	0.512 "	Ferrite	10 %	125 °C	-40 °C	Radial Vertical Cylinder	Through Hole	11.7 mm	0.461 in	Unshielded	2.52 MHz 100	33 µH		45 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.53
		10	$ 0.41
		25	$ 0.37
		50	$ 0.34
		100	$ 0.32
		250	$ 0.29
		500	$ 0.27
		1000	$ 0.25
		2500	$ 0.22

Description

General part information

RLB1314 Series

100 µH Unshielded Drum Core, Wirewound Inductor 1 A 120mOhm Max Radial, Vertical Cylinder
