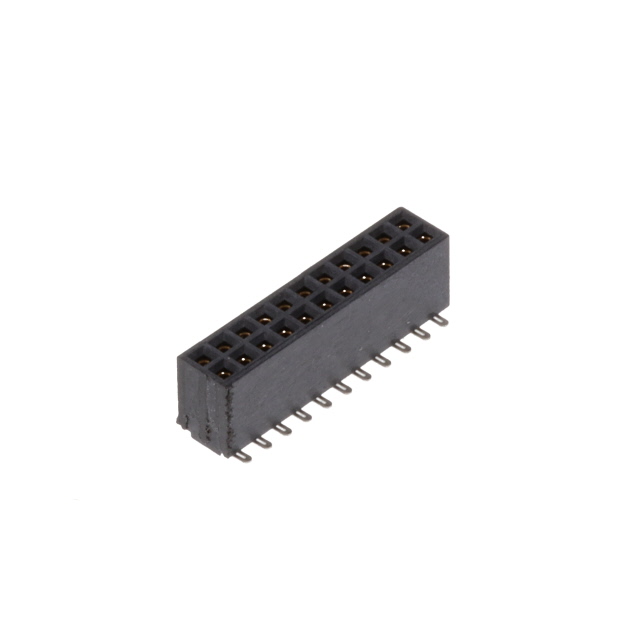

SFMC-111-T2-L-D-P

Active

Samtec Inc.

CONN SKT .050" SMD 22POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFMC-111-T2-L-D-P

Active

Samtec Inc.

CONN SKT .050" SMD 22POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFMC-111-T2-L-D-P

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder

SFMC-111 Series

Part	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Current Rating (Amps)	Number of Rows	Contact Finish - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Connector Type	Features	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Style	Termination	Mounting Type	Fastening Type	Insulation Material	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Samtec Inc. SFMC-111-L1-S-D-P	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	30 Áin	0.76 Ám	Gold	All	0.12 in	3.05 mm	Black	Receptacle	Pick and Place	Square	0.05 in	1.27 mm	4.57 mm	0.18 "	Board to Board Cable	Solder	Through Hole	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Beryllium Copper	-55 °C	125 °C
Samtec Inc. SFMC-111-02-SM-D-P-TR	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	30 Áin	0.76 Ám	Gold	All			Black	Receptacle	Pick and Place	Square	0.05 in	1.27 mm	4.7 mm	0.185 in	Board to Board Cable	Solder	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Beryllium Copper	-55 °C	125 °C
Samtec Inc. SFMC-111-T2-SM-D-TR	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	30 Áin	0.76 Ám	Gold	All			Black	Receptacle		Square	0.05 in	1.27 mm	4.7 mm	0.185 in	Board to Board Cable	Solder	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. SFMC-111-02-L-D-TR	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	10 çin	0.25 çm	Gold	All			Black	Receptacle		Square	0.05 in	1.27 mm	4.7 mm	0.185 in	Board to Board Cable	Solder	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Beryllium Copper	-55 °C	125 °C
Samtec Inc. SFMC-111-01-L-D-TR	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	10 çin	0.25 çm	Gold	All	0.12 in	3.05 mm	Black	Receptacle		Square	0.05 in	1.27 mm	4.57 mm	0.18 "	Board to Board Cable	Solder	Through Hole	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Beryllium Copper	-55 °C	125 °C
Samtec Inc. SFMC-111-L2-S-D	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	30 Áin	0.76 Ám	Gold	All			Black	Receptacle		Square	0.05 in	1.27 mm	4.7 mm	0.185 in	Board to Board Cable	Solder	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Beryllium Copper	-55 °C	125 °C
Samtec Inc. SFMC-111-L1-L-D	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	10 çin	0.25 çm	Gold	All	0.12 in	3.05 mm	Black	Receptacle		Square	0.05 in	1.27 mm	4.57 mm	0.18 "	Board to Board Cable	Solder	Through Hole	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Beryllium Copper	-55 °C	125 °C
Samtec Inc. SFMC-111-T2-L-D-P	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	10 çin	0.25 çm	Gold	All			Black	Receptacle	Pick and Place	Square	0.05 in	1.27 mm	4.7 mm	0.185 in	Board to Board Cable	Solder	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. SFMC-111-T2-S-D	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	30 Áin	0.76 Ám	Gold	All			Black	Receptacle		Square	0.05 in	1.27 mm	4.7 mm	0.185 in	Board to Board Cable	Solder	Surface Mount	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. SFMC-111-T1-S-D	0.05 in	1.27 mm	UL94 V-0	2.9 A	2	Tin	Female Socket	30 Áin	0.76 Ám	Gold	All	0.12 in	3.05 mm	Black	Receptacle		Square	0.05 in	1.27 mm	4.57 mm	0.18 "	Board to Board Cable	Solder	Through Hole	Push-Pull	Liquid Crystal Polymer (LCP)	22 positions	Phosphor Bronze	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.85
		25	$ 4.38
		50	$ 4.07
		100	$ 3.88
		500	$ 3.64

Description

General part information

SFMC-111 Series

22 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
