8AB36-1230-LJ

Obsolete

3M (TC)

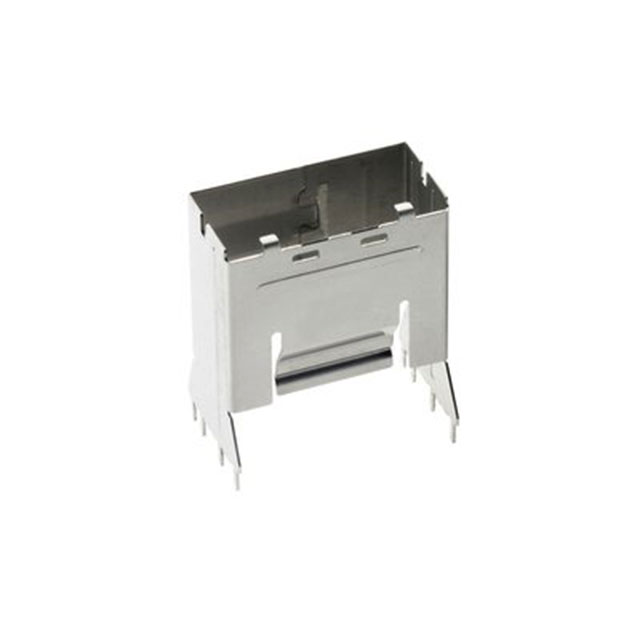

CONN MINI SAS RCPT 36POS SLD SMD

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN MINI SAS RCPT 36POS SLD SMD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Features	Termination	Number of Positions	Connector Style	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
3M (TC) 8AB36-2210-LJ-PR	Mini SAS	Board Guide	Kinked Pin	36	Receptacle	Through Hole Right Angle	0.76 Ám	30 Áin	Gold
3M (TC) 8AB36-1230-LJ-PP	Mini SAS	Board Guide	Solder	36	Receptacle	Surface Mount	0.76 Ám	30 Áin	Gold
3M (TC) 8AB36-1220-LJ	Mini SAS	Board Guide	Solder	36	Receptacle	Through Hole	0.76 Ám	30 Áin	Gold
3M (TC) 8AB36-1230-LJ	Mini SAS	Board Guide	Solder	36	Receptacle	Surface Mount	0.76 Ám	30 Áin	Gold
3M (TC) 8AB36-2420-LJ-PR
3M (TC) 8AB36-2220-LJ-PR	Mini SAS	Board Guide	Solder	36	Receptacle	Through Hole Right Angle	0.76 Ám	30 Áin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

36 Position SAS, Mini Receptacle Connector Solder Surface Mount

Technical documentation and resources

No documents available
