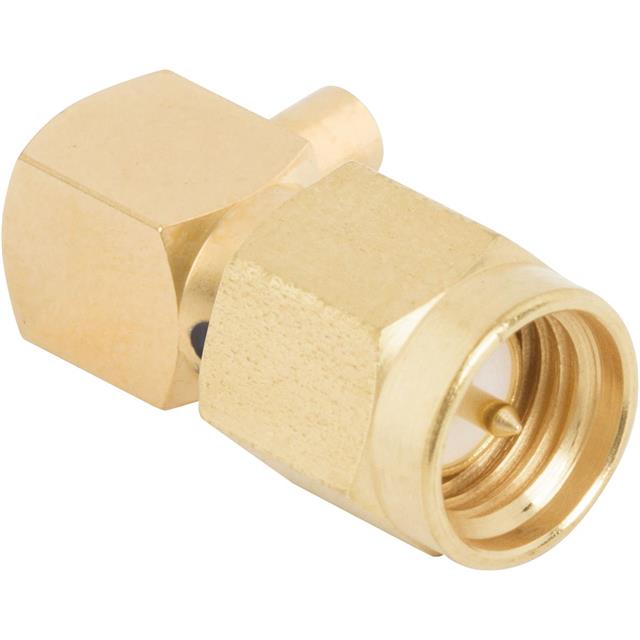

2912-6001

Active

Amphenol SV Microwave

SMA MALE CONNECTOR, R/A FOR .141 CABLE /INDIVIDUAL WITH BULK PIECE PARTS - TRAY (PACK FILL QTY: 50) - (BULK PIECE PARTS: 1X CAP

Search across all available documentation for this part.

Active

Amphenol SV Microwave

SMA MALE CONNECTOR, R/A FOR .141 CABLE /INDIVIDUAL WITH BULK PIECE PARTS - TRAY (PACK FILL QTY: 50) - (BULK PIECE PARTS: 1X CAP

Technical Specifications

Parameters and characteristics for this part

Specification	2912-6001

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-402 (.141" Flexible)
Cable Group	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Shield Termination	Solder

Part	Contact Termination	Number of Ports	Center Contact Plating	Connector Style	Body Finish	Dielectric Material	Mating Cycles	Mounting Type	Impedance	Center Contact Material	Shield Termination	Body Material	Frequency - Max [Max]	Housing Color	Connector Type	Cable Group	Cable Group
Amphenol SV Microwave 2912-6001	Solder	1	Gold	SMA	Gold	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line) Right Angle	50 Ohms	Brass	Solder	Stainless Steel	12.4 GHz	Gold	Male Pin Plug	RG-402 (.141" Flexible)	0.141 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
