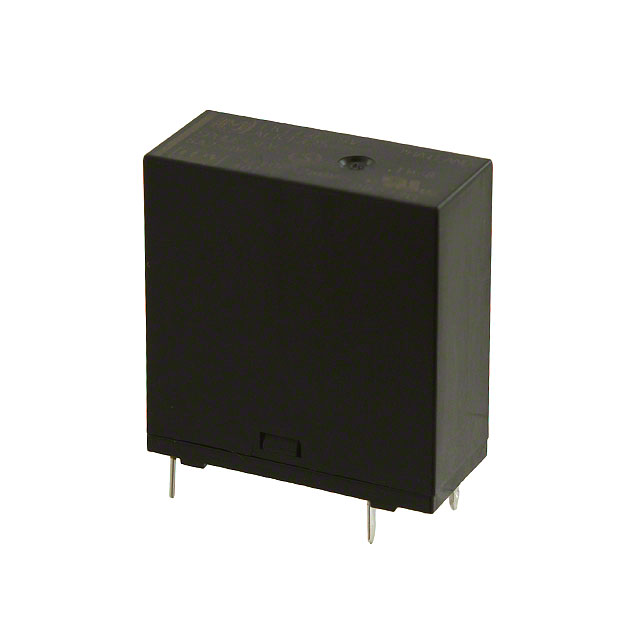

LKT1AF-9V

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 5A 9V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 5A 9V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switching Voltage [Max]	Operate Time	Coil Voltage	Load - Max Switching	Contact Material	Approval Agency	Release Time	Termination Style	Coil Type	Contact Rating (Current)	Relay Type	Seal Rating	Must Operate Voltage	Must Release Voltage	Coil Resistance	Coil Current
Panasonic Electric Works LKT1AF-18V	SPST-NO (1 Form A)	-40 °C	70 °C	Through Hole	277 VAC	15 ms	8 VDC	1385 VA	Silver Tin Oxide (AgSnO)	cURus TUV VDE	5 ms	PC Pin	Non Latching	5 A	General Purpose	Sealed - Flux Protection
Panasonic Electric Works LKT1AF-9V	SPST-NO (1 Form A)	-40 °C	70 °C	Through Hole	277 VAC	15 ms	9 VDC	1385 VA	Silver Tin Oxide (AgSnO)	cURus TUV VDE	5 ms	PC Pin	Non Latching	5 A	General Purpose	Sealed - Flux Protection	6.3 VDC	0.9 VDC	324 Ohms	27.8 mA
Panasonic Electric Works LKT1AF-24V	SPST-NO (1 Form A)	-40 °C	70 °C	Through Hole	277 VAC	15 ms	24 VDC	1385 VA	Silver Tin Oxide (AgSnO)	cURus TUV VDE	5 ms	PC Pin	Non Latching	5 A	General Purpose	Sealed - Flux Protection	16.8 VDC	2.4 VDC	2.3 kOhms	10.4 mA
Panasonic Electric Works LKT1AF-6V	SPST-NO (1 Form A)	-40 °C	70 °C	Through Hole	277 VAC	15 ms		1385 VA	Silver Tin Oxide (AgSnO)	cURus TUV VDE	5 ms	PC Pin	Non Latching	5 A	General Purpose	Sealed - Flux Protection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
