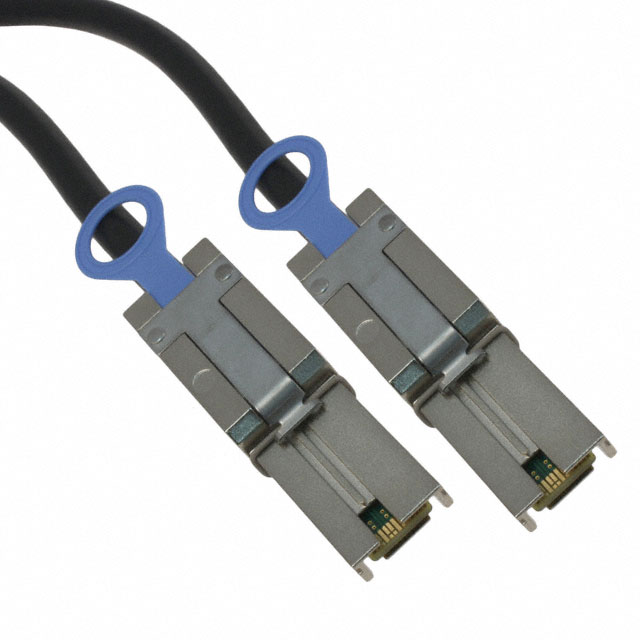

10084749-P030006LF

Active

Amphenol ICC (FCI)

CABLE MINISAS 4X M-M 3M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10084749-P030006LF

Active

Amphenol ICC (FCI)

CABLE MINISAS 4X M-M 3M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10084749-P030006LF

Cable Connectors	miniSAS 4x
Cable Type	Round
Color	Black
Connector Type	Plug to Plug
Fastening Type	Latch Lock
Features	Pull Tab, Key Slot 2-4 to Key Slot 4-6
Frequency - Max [Max]	3 Gbps
Gender	Male to Male
Length [x]	9.84 ft
Length [x]	3 m
Number of Positions	26
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Usage	External
Wire Gauge	28 AWG

10084749 Series

Part	Gender	Connector Type	Frequency - Max [Max]	Length [x]	Length [x]	Cable Type	Shielding	Color	Usage	Cable Connectors	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Features
Amphenol ICC (FCI) 10084749-N040004LF	Male to Male	Plug to Plug	3 Gbps	4 m	13.12 ft	Round	Unshielded	Black	External	miniSAS 4x	26 AWG	-40 °C	80 C	Latch Lock	26
Amphenol ICC (FCI) 10084749-P030005LF	Male to Male	Plug to Plug	3 Gbps	3 m	9.84 ft	Round	Unshielded	Black	External	miniSAS 4x	28 AWG	-40 °C	80 C	Latch Lock	26
Amphenol ICC (FCI) 10084749-N040003LF	Male to Male	Plug to Plug	3 Gbps	4 m	13.12 ft	Round	Unshielded	Black	External	miniSAS 4x	26 AWG	-40 °C	80 C	Latch Lock	26
Amphenol ICC (FCI) 10084749-N040005LF	Male to Male	Plug to Plug	3 Gbps	4 m	13.12 ft	Round	Unshielded	Black	External	miniSAS 4x	26 AWG	-40 °C	80 C	Latch Lock	26
Amphenol ICC (FCI) 10084749-P030006LF	Male to Male	Plug to Plug	3 Gbps	3 m	9.84 ft	Round	Unshielded	Black	External	miniSAS 4x	28 AWG	-40 °C	80 C	Latch Lock	26	Key Slot 2-4 to Key Slot 4-6 Pull Tab
Amphenol ICC (FCI) 10084749-N050003LF	Male to Male	Plug to Plug	3 Gbps			Round	Unshielded	Black	External	miniSAS 4x	26 AWG	-40 °C	80 C	Latch Lock	26
Amphenol ICC (FCI) 10084749-P030002LF	Male to Male	Plug to Plug	3 Gbps	3 m	9.84 ft	Round	Unshielded	Black	External	miniSAS 4x	28 AWG	-40 °C	80 C	Latch Lock	26	Key Slot 4-6 (both) Pull Tab
Amphenol ICC (FCI) 10084749-N050006LF	Male to Male	Plug to Plug	3 Gbps			Round	Unshielded	Black	External	miniSAS 4x	26 AWG	-40 °C	80 C	Latch Lock	26
Amphenol ICC (FCI) 10084749-P010004LF	Male to Male	Plug to Plug	3 Gbps	1 m	3.28 ft	Round	Unshielded	Black	External	miniSAS 4x	28 AWG	-40 °C	80 C	Latch Lock	26
Amphenol ICC (FCI) 10084749-N040002LF	Male to Male	Plug to Plug	3 Gbps	4 m	13.12 ft	Round	Unshielded	Black	External	miniSAS 4x	26 AWG	-40 °C	80 C	Latch Lock	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10084749 Series

26 Position miniSAS 4x Plug to Plug 9.84' (3.00m) Black Unshielded

Documents

Technical documentation and resources
