NE3509M04-T2-A
ObsoleteCEL
RF MOSFET GAAS HJ-FET 2V M04
Deep-Dive with AI
Search across all available documentation for this part.
NE3509M04-T2-A
ObsoleteCEL
RF MOSFET GAAS HJ-FET 2V M04
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NE3509M04-T2-A |
|---|---|
| Current - Test | 10 mA |
| Current Rating (Amps) | 60 mA |
| Frequency | 2 GHz |
| Gain | 17.5 dBi |
| Noise Figure | 0.4 dB |

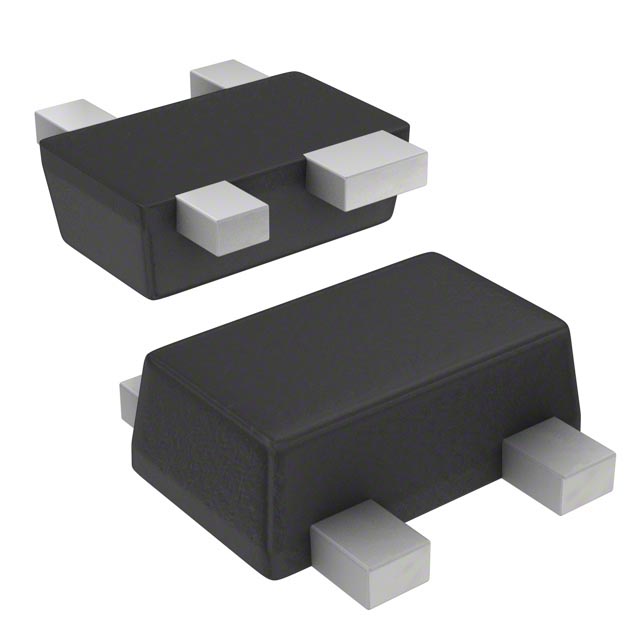

| Package / Case | SOT-343F |
| Power - Output | 11 dBm |
| Supplier Device Package | M04 |
| Technology | GaAs HJ-FET |
| Voltage - Rated | 4 V |
| Voltage - Test | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NE3509 Series
RF Mosfet 2 V 10 mA 2GHz 17.5dB 11dBm M04
