Specification	D38999/20WA35PBL

Connector Type	Plug Housing
Contact Size Options	22D
Contact Type	Crimp
Fastening Type	Threaded
Grade	Military
Housing Color	Green
Ingress Protection	Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	6
Orientation	B
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Cadmium
Shell Material	Aluminum
Shell Size (MIL)	A
Shielding	Shielded
Type	For Male Pins

D38999/20WA Series

...

Part	Grade	Shell Finish	Orientation	Shell Material	Type	Fastening Type	Shell Size (MIL)	Insert Material	Connector Type	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection	Contact Size Options	Qualification	Number of Positions	Contact Type	Mounting Type	Contact Shape	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Mounting Feature	Primary Material	Note	Housing Color	Contact Size	Contact Material	Applications	Contact Finish Thickness - Mating	Features	Contact Finish - Mating	Termination	Color

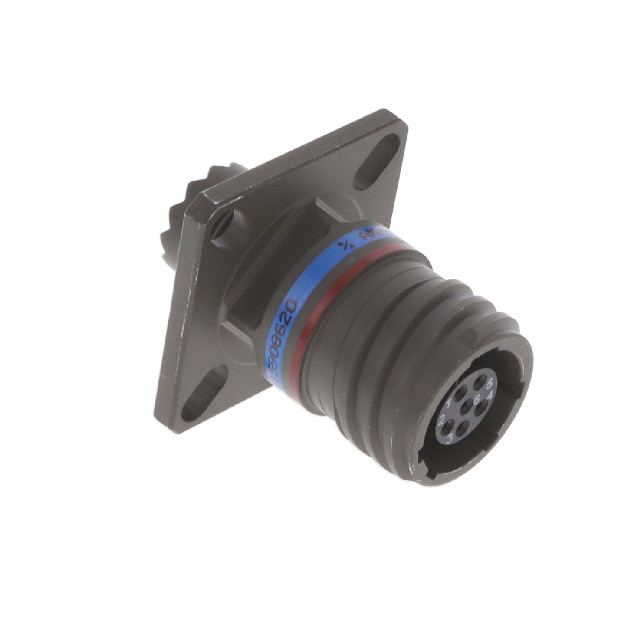

Amphenol Aerospace Operations D38999/20WA35SNLC	Military	Cadmium	N (Normal)	Aluminum	For Female Sockets	Threaded	A	Thermoplastic	Receptacle Housing	Shielded	-65 °C	175 °C	Environment Resistant	22D	MIL-DTL-38999 Series III	6	Crimp	Panel Mount	Circular	35	9	Flange	Metal	Contacts Not Included	Olive Drab
Amphenol Aerospace Operations D38999/20WA98SBL	Military	Cadmium	B	Aluminum	For Female Sockets	Threaded	A	Thermoplastic	Receptacle Housing	Shielded Unshielded	-65 °C	175 °C	Environment Resistant		MIL-DTL-38999 Series III	3	Crimp	Panel Mount	Circular			Flange	Metal	Contacts Not Included	Olive Drab	20
Amphenol Aerospace Operations D38999/20WA98SNL	Military	Cadmium	N (Normal)	Aluminum	For Female Sockets	Threaded	A		Receptacle Housing	Shielded					MIL-DTL-38999 Series III	3	Crimp	Panel Mount				Flange	Metal		Olive Drab	20
Amphenol Aerospace Operations D38999/20WA98PB	Military	Olive Drab Cadmium	B	Aluminum		Threaded	A	Thermoplastic	Male Pins Receptacle	Shielded	-65 °C	175 °C	Environment Resistant		MIL-DTL-38999 Series III	3		Panel Mount		98	9	Flange	Metal				Copper Alloy	Aerospace Aviation Marine Military	50 µin	Self Locking	Gold	Crimp	Olive Drab

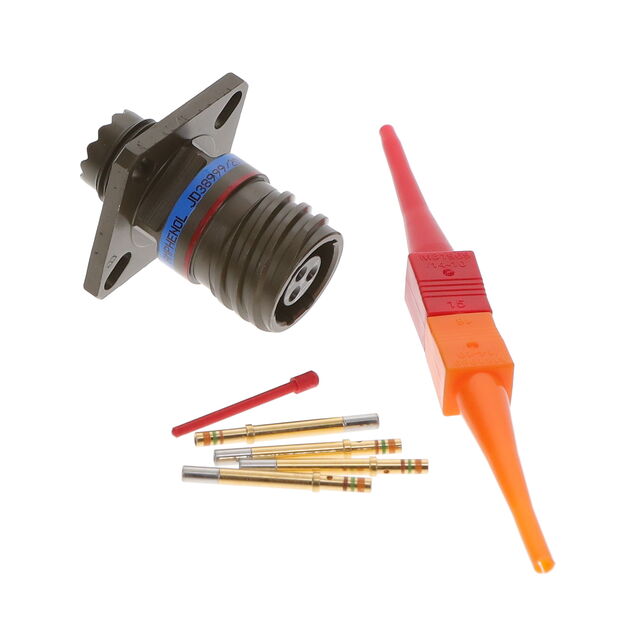

Amphenol Aerospace Operations D38999/20WA98SB	Military	Olive Drab Cadmium	B	Aluminum		Threaded	A	Thermoplastic	Female Sockets Receptacle	Shielded	-65 °C	175 °C	Environment Resistant		MIL-DTL-38999 Series III	3		Panel Mount		98	9	Flange	Metal				Copper Alloy	Aerospace Aviation Marine Military	50 µin	Self Locking	Gold	Crimp	Olive Drab
Amphenol Aerospace Operations D38999/20WA35SA	Military	Olive Drab Cadmium	A	Aluminum		Threaded	A		Female Sockets Receptacle	Shielded	-65 °C	175 °C	Environment Resistant		MIL-DTL-38999 Series III	6		Panel Mount		35	9	Flange	Metal				Copper Alloy	Aerospace Aviation Marine Military	50 µin		Gold	Crimp	Olive Drab
Amphenol Aerospace Operations D38999/20WA98JN	Military	Olive Drab Cadmium	N (Normal)	Aluminum		Threaded	A		Female Sockets Receptacle	Shielded	-65 °C	175 °C	Environment Resistant		MIL-DTL-38999 Series III	3		Panel Mount		98	9	Flange	Metal								Gold	Crimp	Olive Drab
Amphenol Aerospace Operations D38999/20WA7SBL		Cadmium	B	Aluminum	For Female Sockets	Threaded	A		Receptacle Housing	Shielded				22D			Crimp	Panel Mount				Flange	Metal
Amphenol Aerospace Operations D38999/20WA98AB	Military	Cadmium	B	Aluminum	For Male Pins	Threaded	A		Receptacle Housing	Shielded			Environment Resistant		MIL-DTL-38999 Series III	3	Crimp	Panel Mount		98	9	Flange	Metal		Olive Drab	20
Amphenol Aerospace Operations D38999/20WA98BB	Military	Cadmium	B	Aluminum	For Female Sockets	Threaded	A		Receptacle Housing	Shielded			Environment Resistant		MIL-DTL-38999 Series III	3	Crimp	Panel Mount		98	9	Flange	Metal		Olive Drab	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

D38999/20WA35PBL | Datasheet
