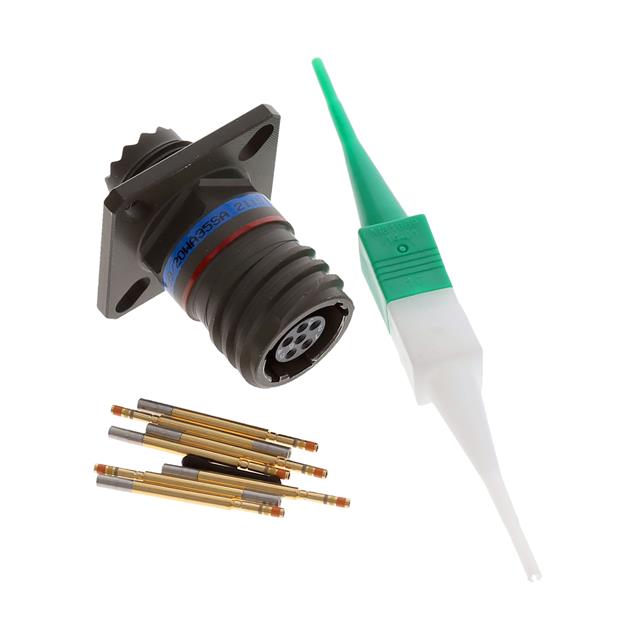

D38999/20WA35SA

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20WA35SA

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20WA35SA

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	9
Shell Size, MIL	A
Shielding	Shielded
Termination	Crimp

D38999/20WA Series

Part	Applications	Color	Qualification	Shell Material	Shell Size, MIL	Termination	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Orientation	Contact Finish - Mating	Grade	Number of Positions	Mounting Feature	Shielding	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Finish	Contact Size	Note	Type	Contact Type	Contact Shape	Housing Color	Contact Size
Amphenol Aerospace Operations D38999/20WA35SA	Aerospace Aviation Marine Military	Olive Drab	MIL-DTL-38999 Series III	Aluminum	A	Crimp	Metal	9	35	Receptacle Female Sockets	A	Gold	Military	6	Flange	Shielded	Copper Alloy	1.27 µm	50 µin	-65 ░C	347 °F	Environment Resistant	Olive Drab Cadmium
Amphenol Aerospace Operations D38999/20WA98JA-LC			MIL-DTL-38999 Series III	Aluminum	A			9	98	Receptacle Housing	A		Military		Flange	Shielded				-65 ░C	347 °F	Environment Resistant	Cadmium	20	Contacts Not Included	For Female Sockets	Crimp	Circular	Olive Drab
Amphenol Aerospace Operations D38999/20WA35HA-LC			MIL-DTL-38999 Series III	Aluminum	A			9	35	Receptacle Housing	A		Military	6	Flange	Shielded				-65 ░C	347 °F	Environment Resistant	Cadmium		Contacts Not Included	For Male Pins	Crimp	Circular	Olive Drab	22D
Amphenol Aerospace Operations D38999/20WA98SN	Aerospace Aviation Marine Military	Olive Drab	MIL-DTL-38999 Series III	Aluminum	A	Crimp	Metal	9	98	Receptacle Female Sockets	N	Gold	Military		Flange	Shielded	Copper Alloy	1.27 µm	50 µin	-65 ░C	347 °F	Environment Resistant	Olive Drab Cadmium
Amphenol Aerospace Operations D38999/20WA98SA	Aerospace Aviation Marine Military	Olive Drab	MIL-DTL-38999 Series III	Aluminum	A	Crimp	Metal	9	98	Receptacle Female Sockets	A	Gold	Military		Flange	Shielded	Copper Alloy	1.27 µm	50 µin	-65 ░C	347 °F	Environment Resistant	Olive Drab Cadmium
Amphenol Aerospace Operations D38999/20WA98HA	Aviation Marine Military	Olive Drab	MIL-DTL-38999 Series III	Aluminum	A	Crimp	Metal	9	98	Male Pins Receptacle	A	Gold	Military		Flange	Shielded	Copper Alloy	2.54 çm	100 çin	-65 ░C	347 °F	Environment Resistant	Olive Drab Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 146.14
		10	$ 122.63
		25	$ 117.33
		50	$ 109.66

Description

General part information

D38999/20WA Series

6 Position Circular Connector Receptacle, Female Sockets Crimp
