KSW30Y-0100

Obsolete

OK INDUSTRIES

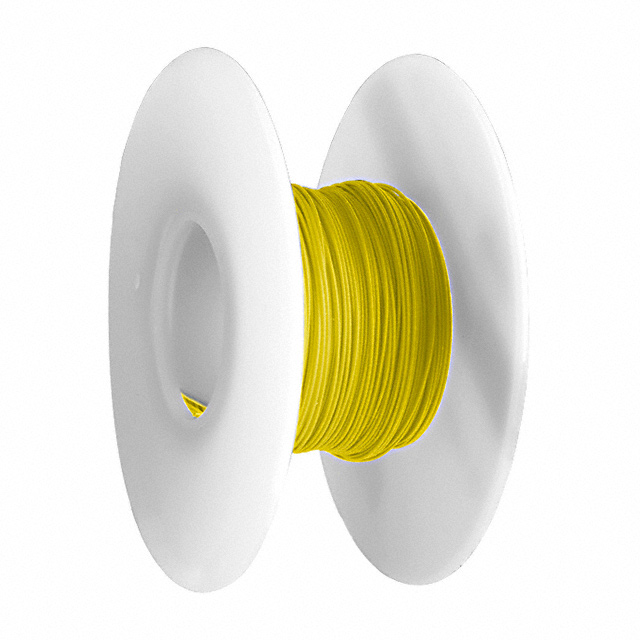

WIRE WW 30AWG PVDF YELLOW 100'

Search across all available documentation for this part.

Obsolete

OK INDUSTRIES

WIRE WW 30AWG PVDF YELLOW 100'

Technical Specifications

Parameters and characteristics for this part

Specification	KSW30Y-0100

Conductor Diameter [diameter]	0.25 mm
Conductor Diameter [diameter]	0.01 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.004 in
Jacket (Insulation) Thickness	0.09 mm
Jacket Color	Yellow
Length	30.5 m
Length [x]	100 ft
Ratings	UL Style 1423
Wire Gauge	30 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Conductor Plating	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Jacket Color	Wire Gauge	Ratings	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length
OK INDUSTRIES KSW30Y-0100	0.019 in	0.5 mm	Polyvinylidene Fluoride (PVDF)	Silver	0.25 mm	0.01 in	Yellow	30 AWG	UL Style 1423	Copper Bare	0.004 in	0.09 mm	100 ft	30.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Wrap 30 AWG Yellow Polyvinylidene Fluoride (PVDF) 100' (30.5m)
