MAX11103EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11103
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11103EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX11103
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11103EVKIT+ | MAX11103 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | MUX-S/H-ADC |
| Data Interface | QSPI™, Serial, SPI™, MICROWIRE™ | SPI, QSPI™, Serial, SPI™, MICROWIRE™ |
| Input Range [Max] | VREF | VREF |
| Input Range [Min] | 0 | 0 |
| Input Type | - | Single Ended |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 12 bits | 12 bits |
| Number of Inputs | - | 2 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-WFDFN Exposed Pad, Exposed Pad, 10-TFSOP, 10-MSOP |
| Package / Case | - | 0.118 - 3 Lead |
| Power (Typ) @ Conditions | 8.3 mW | 8.3 mW |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External |
| Sampling Rate (Per Second) | 3 M | 3 M |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-TDFN (3x3), 10-uMAX-EP |
| Utilized IC / Part | MAX11103 | MAX11103 |
| Voltage - Supply, Analog | - | 3.6 V |
| Voltage - Supply, Analog | - | 2.2 V |
| Voltage - Supply, Digital | - | 2.2 V |
| Voltage - Supply, Digital | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 120.12 | |
MAX11103 Series
IC ADC 12BIT SAR 10TDFN
| Part | Sampling Rate (Per Second) | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Number of Bits | Ratio - S/H:ADC | Mounting Type | Supplier Device Package | Package / Case | Configuration | Data Interface | Reference Type | Number of Inputs | Architecture | Operating Temperature [Max] | Operating Temperature [Min] | Number of A/D Converters | Input Type | Package / Case | Supplied Contents | Power (Typ) @ Conditions | Input Range [Max] | Input Range [Min] | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11103ATB+T | 3 M | 2.2 V | 3.6 V | 3.6 V | 2.2 V | 12 bits | 1:1 | Surface Mount | 10-TDFN (3x3) | 10-WFDFN Exposed Pad | MUX-S/H-ADC | SPI | External | 2 | SAR | 125 °C | -40 °C | 1 | Single Ended | ||||||
Analog Devices Inc./Maxim Integrated MAX11103AUB+ | 3 M | 2.2 V | 3.6 V | 3.6 V | 2.2 V | 12 bits | 1:1 | Surface Mount | 10-uMAX-EP | 10-MSOP, 10-TFSOP, Exposed Pad | MUX-S/H-ADC | SPI | External | 2 | SAR | 125 °C | -40 °C | 1 | Single Ended | 0.118 in, 3 Lead | |||||
Analog Devices Inc./Maxim Integrated MAX11103EVKIT+ | 3 M | 12 bits | MICROWIRE™, QSPI™, Serial, SPI™ | 1 | Board(s) | 8.3 mW | VREF | 0 | MAX11103 | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11103AUB+T | 3 M | 2.2 V | 3.6 V | 3.6 V | 2.2 V | 12 bits | 1:1 | Surface Mount | 10-uMAX-EP | 10-MSOP, 10-TFSOP, Exposed Pad | MUX-S/H-ADC | SPI | External | 2 | SAR | 125 °C | -40 °C | 1 | Single Ended | 0.118 in, 3 Lead |
Description
General part information
MAX11103 Series

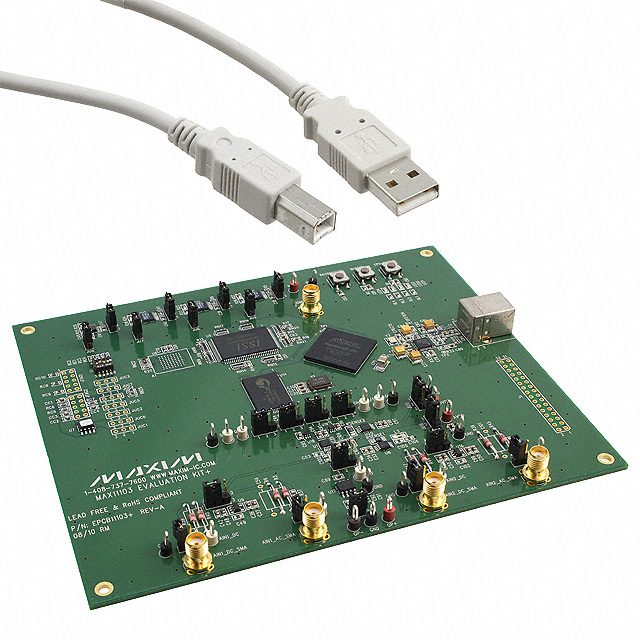

MAX11103 - 12 Bit 3M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
