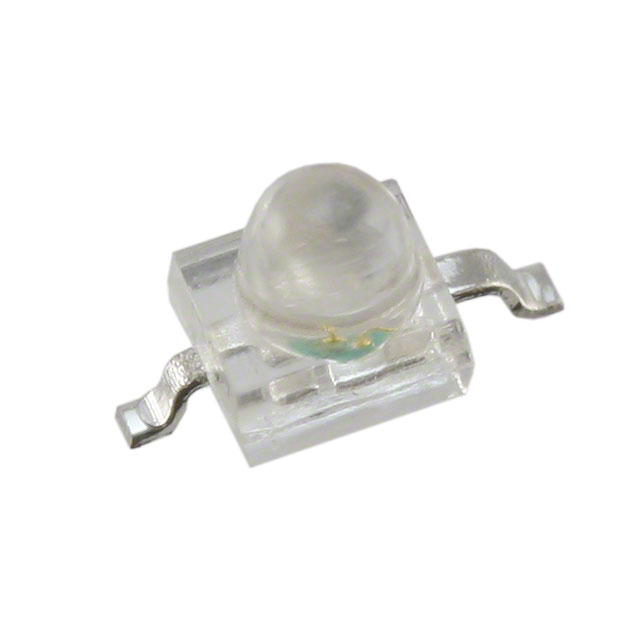

Specification	AM2520SECK03

Color	Orange
Configuration	Standard
Current - Test	20 mA
Height (Max)	2.9 mm
Lens Color	Colorless
Lens Diameter	1.9 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	1800 mcd
Mounting Type	Surface Mount
Package / Case	Gull Wing, 2-SMD
Package Name	SMD
Size / Dimension Length	2.5 mm
Size / Dimension Width	2 mm
Viewing Angle	20 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	601 nm
Wavelength - Peak	610 nm

AM2520 Series

Part	Package / Case	Size / Dimension Length	Size / Dimension Width	Mounting Type	Height (Max)	Package Name	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Diameter	Lens Color	Wavelength - Peak	Viewing Angle	Color	Lens Style	Lens Transparency	Wavelength - Dominant	Configuration	Wavelength	Current - Dark (Id) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Collector Emitter Breakdown (Max)	Orientation	Power - Max
Kingbright AM2520SGD03	2-SMD Gull Wing	2.5 mm	2 mm	Surface Mount	2.9 mm	SMD	10 mcd	2.2 V	20 mA	1.9 mm	Green	565 nm	40 °	Green	Domed Top Round	Diffused	568 nm	Standard
Kingbright AM2520P3BT03	2-SMD Gull Wing			Surface Mount									20 °						940 nm	100 nA	-40 °C	85 °C	30 V	Top View	100 mW
Kingbright AM2520SURCK09	2-SMD Bottom Entry Z-Bend	2.5 mm	2 mm	Bottom Entry Surface Mount	2.9 mm	2-SMD Z-Bend	1000 mcd	1.95 V	20 mA	1.9 mm	Colorless	645 nm	20 °	Red	Domed Top Round	Clear	630 nm	Standard
Kingbright AM2520SURCK03	2-SMD Gull Wing	2.5 mm	2 mm	Surface Mount	2.9 mm	SMD	1000 mcd	1.95 V	20 mA	1.9 mm	Colorless	645 nm	20 °	Red	Domed Top Round	Clear	630 nm	Standard
Kingbright AM2520ZGC09	2-SMD Z-Bend	2.5 mm	2 mm	Bottom Entry Surface Mount	2.9 mm	SMD	3000 mcd	3.3 V	20 mA	1.9 mm	Colorless	515 nm	20 °	Green	Domed Top Round	Clear	525 nm	Standard
Kingbright AM2520MGC09	2-SMD Z-Bend	2.5 mm	2 mm	Surface Mount	2.9 mm	SMD	1000 mcd	2.1 V	20 mA	1.9 mm	Colorless	574 nm	20 °	Green	Domed Top Round	Clear	570 nm	Standard
Kingbright AM2520EC09	2-SMD Z-Bend	2.5 mm	2 mm	Bottom Entry Surface Mount	2.9 mm	SMD	50 mcd	2 V	20 mA	1.9 mm	Colorless	627 nm	20 °	Red	Domed Top Round	Clear	617 nm	Standard
Kingbright AM2520SECK03	2-SMD Gull Wing	2.5 mm	2 mm	Surface Mount	2.9 mm	SMD	1800 mcd	2.1 V	20 mA	1.9 mm	Colorless	610 nm	20 °	Orange	Domed Top Round	Clear	601 nm	Standard
Kingbright AM2520QBC/D03	2-SMD Gull Wing	2.5 mm	2 mm	Surface Mount	2.9 mm	SMD	900 mcd	3.3 V	20 mA	1.9 mm	Colorless	460 nm	20 °	Blue	Domed Top Round	Clear	465 nm	Standard
Kingbright AM2520YC09	2-SMD Z-Bend	2.5 mm	2 mm	Bottom Entry Surface Mount	2.9 mm	SMD	50 mcd	2.1 V	20 mA	1.9 mm	Colorless	590 nm	20 °	Yellow	Domed Top Round	Clear	588 nm	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

AM2520SECK03 | Datasheet
