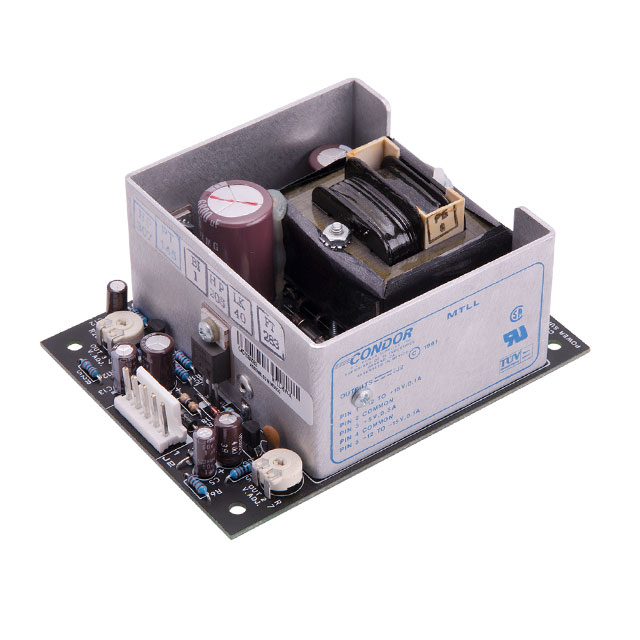

Specification	ML5-1-OV-A

Applications	Medical
Approval Agency	cURus, TUV, CE
Current - Output 1	1 A
Efficiency	45 %
Features	Universal Input, Adjustable Output, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Power (Watts)	5 W
Size / Dimension Height	1.7 in
Size / Dimension Length	4.25 in
Size / Dimension Width	3.25 in
Type	Linear
Voltage - Input (AC) Maximum	240 VAC
Voltage - Input (AC) Minimum	100 VAC
Voltage - Output 1	5 V

ML5-1 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Features	Mounting Type	Efficiency	Current - Output 1	Power (Watts)	Type	Voltage - Output 1	Approval Agency	Applications	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length
SL POWER / Advanced Energy ML5-1-OV-A	70 °C	0 °C	1	Adjustable Output Remote Sense Universal Input	Chassis Mount	45 %	1 A	5 W	Linear	5 V	CE cURus TUV	Medical	240 VAC	100 VAC	3.25 in	1.7 in	4.25 in
