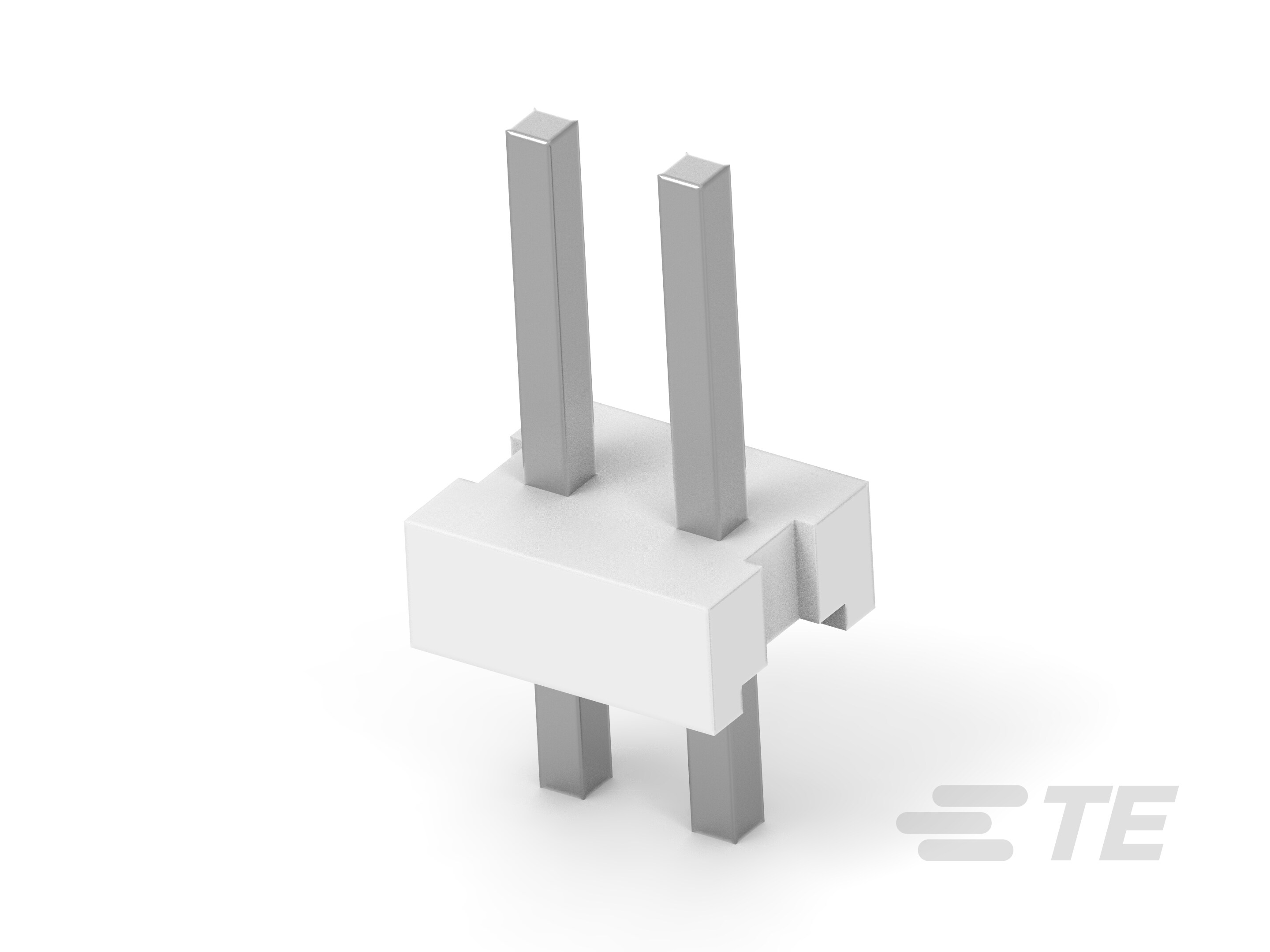

02P MTA156 HDR ASSY STR SQ SN-644749-2

644749-2

Active
TE Connectivity AMP Connectors

02P MTA156 HDR ASSY STR SQ SN

Find alt

Description

General part information

644749 Series

PCB Mount Header, Vertical, Wire-to-Board, 2 Position, 3.96 mm [.156 in] Centerline, Unshrouded, Tin (Sn), Through Hole - Solder, Power, MTA 156

Technical Specifications

Parameters and characteristics for this part

Specification644749-2
ApplicationsGeneral Purpose, Industrial
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Mating0.4 in
Contact Length - Post0.175 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Insulation ColorNatural
Insulation Height0.125 in
Insulation MaterialGlass Filled, Thermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Overall Contact Length0.7 in
Pitch - Mating0.156 in
ShroudingUnshrouded
StyleCable/Wire, Board
TerminationSolder
Voltage Rating600 V
