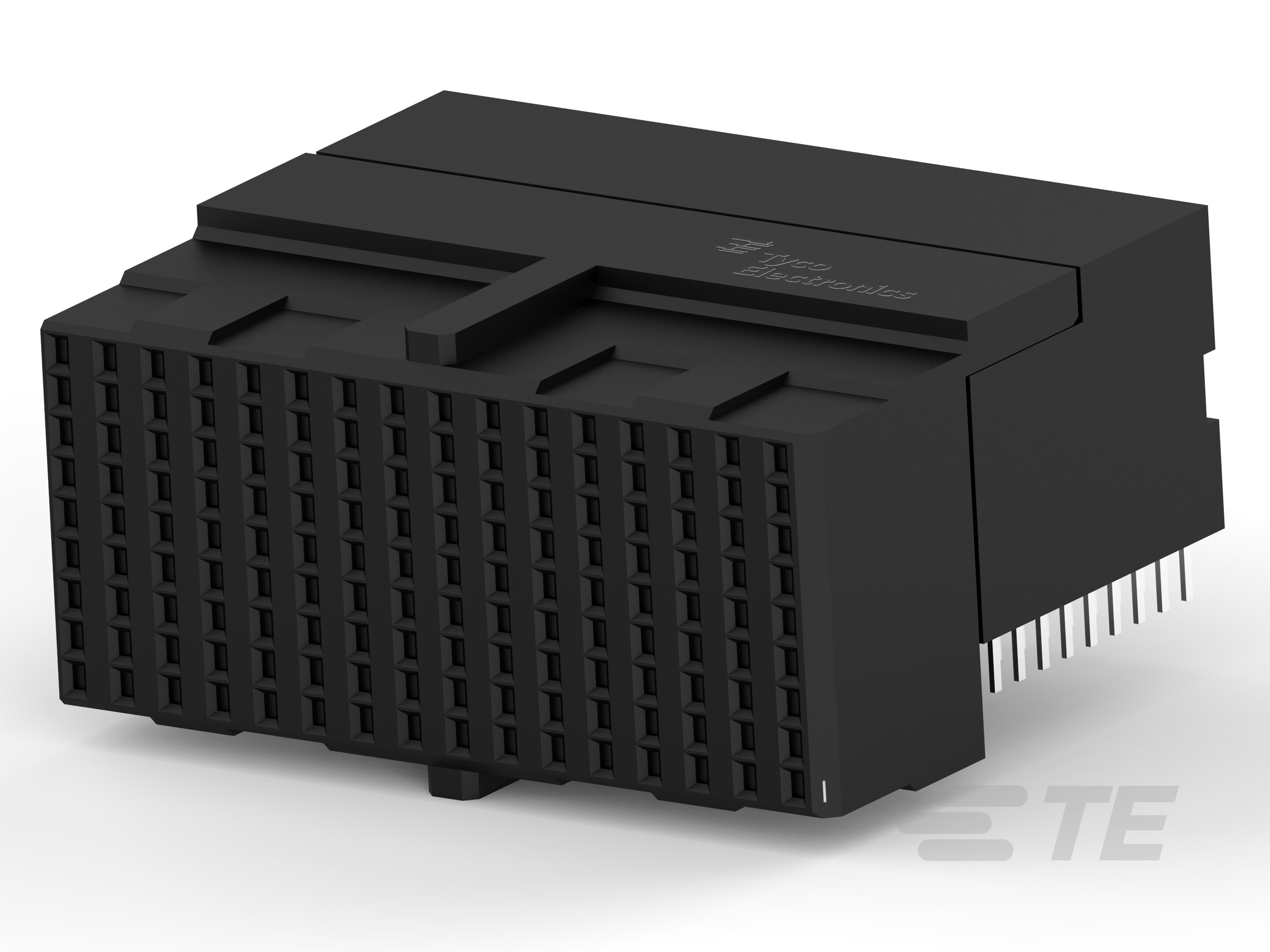

Specification	1934229-1

Color	Black
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Coplanar, Daughtercard
Contact Finish	Gold
Contact Finish Thickness	30 µin
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	16
Number of Positions	144
Number of Positions Loaded	All
Number of Rows	9
Pitch	0.075 in
Termination	Press-Fit

Z-PACK TinMan Series

Part	Connector Usage	Mounting Type	Number of Rows	Number of Positions Loaded	Number of Columns	Contact Finish Thickness	Pitch	Number of Positions	Color	Connector Type	Contact Finish	Connector Style	Termination	Voltage Rating	Material Flammability Rating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Features
TE Connectivity AMP Connectors 1934357-1	Coplanar Daughtercard	Right Angle Through Hole	9	All	10	30 µin	0.075 in	90	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934360-1		Right Angle Through Hole	9	All	8	20 µin	0.075 in	72	Black	Header Male Pins	Gold	High Speed	Press-Fit						Shielded
TE Connectivity AMP Connectors 1934313-1
TE Connectivity AMP Connectors 1934272-1		Through Hole	15	All	8	30 µin	0.075 in	120	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934304-1		Through Hole	12	All	8	30 µin	0.075 in	96	Black	Header Male Pins	Gold	High Speed	Press-Fit
TE Connectivity AMP Connectors 1934224-1	Coplanar Daughtercard	Board Edge Right Angle Through Hole	12	All	10	30 µin	0.075 in	80	Black	Female Sockets Receptacle	Gold	High Speed	Press-Fit
TE Connectivity AMP Connectors 1934342-1		Through Hole	9	All	10	30 µin	0.075 in	90	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934269-1	Backplane	Through Hole	15	All	8	30 µin	0.075 in	120	Black	Header Male Pins	Gold	High Speed	Press-Fit
TE Connectivity AMP Connectors 1934301-1		Through Hole	9	All	8	30 µin	0.075 in	72	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934300-1		Through Hole	9	All	3	30 µin	0.075 in	72	Black	Header Male Pins	Gold	High Speed	Press-Fit
