1934272-1 - TIN MAN HEADER ASSY 5X8 LEFT ROHS COMPLIANT: YES

1934272-1

Active

TE Connectivity AMP Connectors

1934272-1 - TIN MAN HEADER ASSY 5X8 LEFT ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

Z-PACK TinMan Series

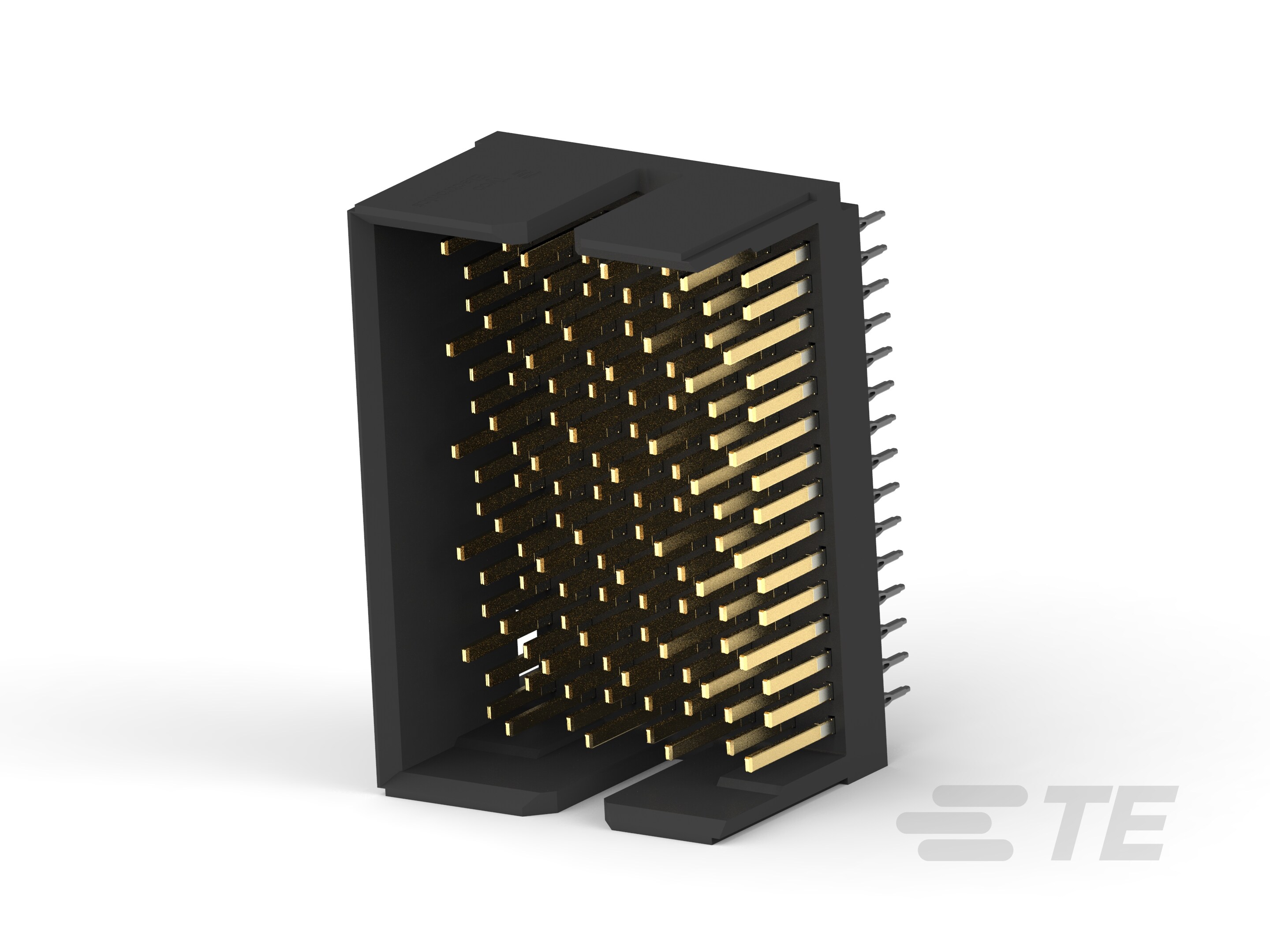

120 Position High Speed Backplane Connector, 15 Row, 8 Column, PCB Mount Header, Vertical, Partially Shrouded, Z-PACK TinMan

Technical Specifications

Parameters and characteristics for this part

Specification	1934272-1

Color	Black
Connector Style	High Speed
Connector Type	Header, Male Pins
Contact Finish	Gold
Contact Finish Thickness	30 µin
Current Rating	0.5 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	8
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	15
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-65 °C
Pitch	0.075 in
Termination	Press-Fit
Voltage Rating	250 V

Z-PACK TinMan Series

Part	Connector Usage	Mounting Type	Number of Rows	Number of Positions Loaded	Number of Columns	Contact Finish Thickness	Pitch	Number of Positions	Color	Connector Type	Contact Finish	Connector Style	Termination	Voltage Rating	Material Flammability Rating	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Features
TE Connectivity AMP Connectors 1934357-1	Coplanar Daughtercard	Right Angle Through Hole	9	All	10	30 µin	0.075 in	90	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934360-1		Right Angle Through Hole	9	All	8	20 µin	0.075 in	72	Black	Header Male Pins	Gold	High Speed	Press-Fit						Shielded
TE Connectivity AMP Connectors 1934313-1
TE Connectivity AMP Connectors 1934272-1		Through Hole	15	All	8	30 µin	0.075 in	120	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934304-1		Through Hole	12	All	8	30 µin	0.075 in	96	Black	Header Male Pins	Gold	High Speed	Press-Fit
TE Connectivity AMP Connectors 1934224-1	Coplanar Daughtercard	Board Edge Right Angle Through Hole	12	All	10	30 µin	0.075 in	80	Black	Female Sockets Receptacle	Gold	High Speed	Press-Fit
TE Connectivity AMP Connectors 1934342-1		Through Hole	9	All	10	30 µin	0.075 in	90	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934269-1	Backplane	Through Hole	15	All	8	30 µin	0.075 in	120	Black	Header Male Pins	Gold	High Speed	Press-Fit
TE Connectivity AMP Connectors 1934301-1		Through Hole	9	All	8	30 µin	0.075 in	72	Black	Header Male Pins	Gold	High Speed	Press-Fit	250 V	UL94 V-0	0.5 A	90 °C	-65 °C
TE Connectivity AMP Connectors 1934300-1		Through Hole	9	All	3	30 µin	0.075 in	72	Black	Header Male Pins	Gold	High Speed	Press-Fit
