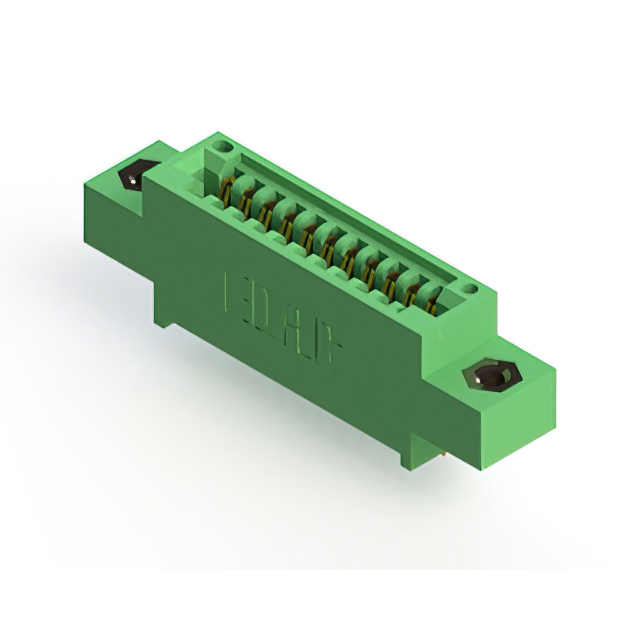

845-011-525-608
ActiveEDAC Inc.
CONN EDGE SINGLE FML 11POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-011-525-608
ActiveEDAC Inc.
CONN EDGE SINGLE FML 11POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-011-525-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-011 Series
...
| Part | Color | Number of Rows | Card Type | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Contact Type | Read Out | Gender | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Material - Insulation | Mounting Type | Termination | Flange Feature | Contact Material | Termination Rows | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Solder | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 1 | ||||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Solder | Copper Alloy | 1 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Solder | Flush Mount Top Opening Unthreaded | Copper Alloy | 1 | 3.25 mm | 0.128 " | ||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Solder | Copper Alloy | 1 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Solder | M3 Threaded Insert Top Mount Opening | Copper Alloy | 1 | ||||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Wire Wrap | Floating Bobbin Flush Mount | Copper Alloy | 1 | 2.95 mm | 0.116 in | ||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole Right Angle | Solder | Side Mount Opening Unthreaded | Copper Alloy | 1 | 3.25 mm | 0.128 in | ||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Wire Wrap | M3 Threaded Insert Top Mount Opening | Copper Alloy | 1 | ||||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Solder | Floating Bobbin Top Mount Opening | Copper Alloy | 1 | 2.95 mm | 0.116 in | ||
EDAC Inc. | Green | 1 | Non Specified - Single Edge | 11 | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Cantilever | Single | Female | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 11 | Diallyl Phthalate (DAP) | Through Hole | Solder | M3 Threaded Insert Top Mount Opening | Copper Alloy | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 63.98 | |
Description
General part information
845-011 Series
11 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
