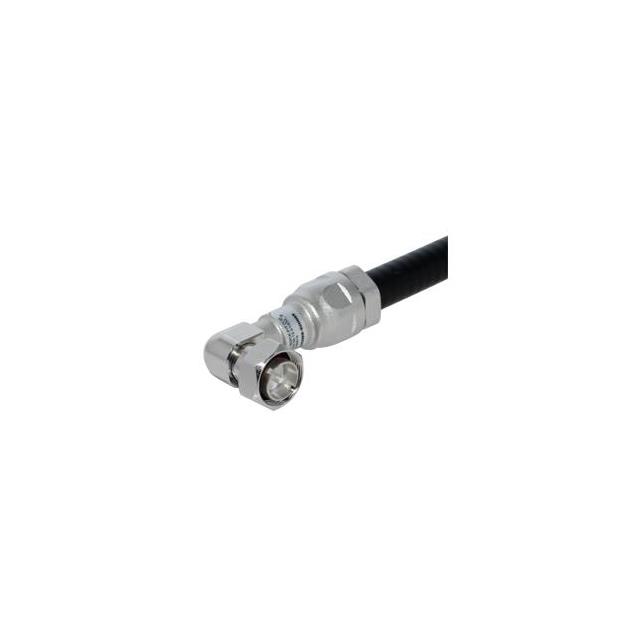

Specification	16_4310-50-12-X1/033_-E

Body Finish	White Bronze
Body Material	Brass
Cable Group	Helical
Cable Group Size	0.5 in
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	4.3/10
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	13 GHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Clamp

16_4310-50 Series

Part	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Body Material	Center Contact Plating	Dielectric Material	Number of Ports	Fastening Type	Contact Termination	Connector Type	Shield Termination	Frequency - Max	Connector Style	Housing Color	Mounting Type	Impedance	Cable Group	Cable Group Size
Huber+Suhner, Inc. 16_4310-50-9-X1/033_-E
Huber+Suhner, Inc. 16_4310-50-12-X60/033_-E	Brass Bronze	-55 °C	85 °C	White Bronze	Brass	Silver	Polytetrafluoroethylene (PTFE)	1	Threaded	Crimp	Male Pin Plug	Clamp	12 Gbps	4.3/10	Silver	Free Hanging (In-Line) Right Angle	50 Ohm
Huber+Suhner, Inc. 16_4310-50-3-X1/003_-H	Brass	-55 °C	90 °C	Silver	Brass	Silver	Polytetrafluoroethylene (PTFE)	1	Threaded	Solder	Male Pin Plug	Solder	12 Gbps	4.3/10	Silver	Free Hanging (In-Line) Right Angle	50 Ohm	RG-141
Huber+Suhner, Inc. 16_4310-50-12-X1/033_-E	Brass	-55 °C	90 °C	White Bronze	Brass	Silver	Polytetrafluoroethylene (PTFE)	1	Threaded	Crimp	Male Pin Plug	Clamp	13 GHz	4.3/10	Silver	Free Hanging (In-Line) Right Angle	50 Ohm	Helical	0.5 in
Huber+Suhner, Inc. 16_4310-50-12-Z60/033_-E	Brass Bronze	-55 °C	85 °C	White Bronze	Brass	Silver	Polytetrafluoroethylene (PTFE)	1	Threaded	Crimp	Male Pin Plug	Clamp	12 Gbps	4.3/10	Silver	Free Hanging (In-Line) Right Angle	50 Ohm	Helical	0.5 in
Huber+Suhner, Inc. 16_4310-50-12-X61/033_-E	Brass Bronze	-55 °C	85 °C	White Bronze	Brass	Silver	Polytetrafluoroethylene (PTFE)	1	Threaded	Crimp	Male Pin Plug	Clamp	12 Gbps	4.3/10	Silver	Free Hanging (In-Line) Right Angle	50 Ohm
Huber+Suhner, Inc. 16_4310-50-12-Z61/033_-E	Brass Bronze	-55 °C	85 °C	White Bronze	Brass	Silver	Polytetrafluoroethylene (PTFE)	1	Threaded	Crimp	Male Pin Plug	Clamp	12 Gbps	4.3/10	Silver	Free Hanging (In-Line) Right Angle	50 Ohm
