K1TAAT0-HM18SN-0000

Active

ODU

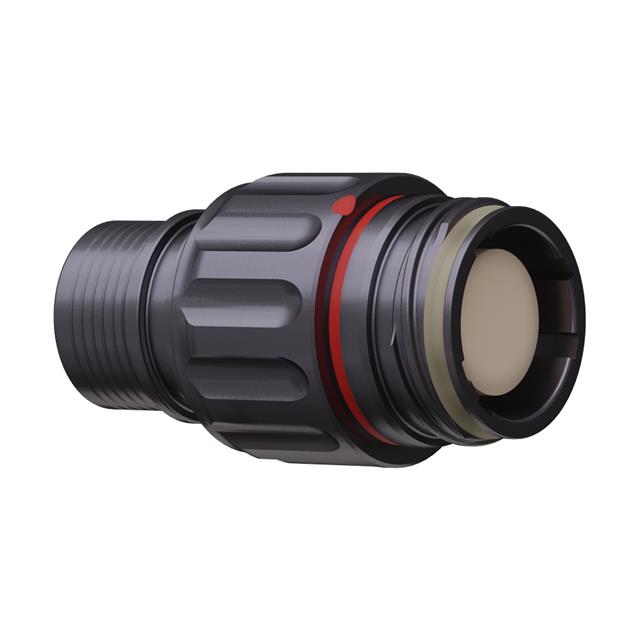

ODU AMC SERIES T IN-LINE RECEPTA

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T IN-LINE RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	K1TAAT0-HM18SN-0000

Cable Opening [custom]	14.6 mm
Cable Opening [custom]	0.575 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A, 5 A
Fastening Type	Threaded, Push-Pull
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	12
Shielding	Shielded
Termination	Crimp
Voltage Rating	50 V

Part	Contact Material	Connector Type	Color	Primary Material	Shielding	Shell Finish	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Shell Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Size - Insert	Current Rating (Amps)	Ingress Protection	Voltage Rating	Fastening Type	Termination	Number of Positions
ODU K1TAAT0-H005SN-0000	Copper Alloy	Receptacle Female Sockets	Silver	Metal	Shielded	Tin Nickel	UL94 V-0	14.6 mm	0.575 in	1.27 µm	50 µin	Gold	Free Hanging (In-Line)	Aluminum	A	-65 ░C	347 °F	Polyetheretherketone (PEEK)	12	13 A	IP68 IP69K	50 V	Push-Pull Threaded	Crimp
ODU K1TAAT0-HM18SN-0000	Copper Alloy	Receptacle Female Sockets	Silver	Metal	Shielded	Tin Nickel	UL94 V-0	14.6 mm	0.575 in	1.27 µm	50 µin	Gold	Free Hanging (In-Line)	Aluminum	A	-65 ░C	347 °F	Polyetheretherketone (PEEK)	12	5 A 7.5 A	IP68 IP69K	50 V	Push-Pull Threaded	Crimp	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Receptacle, Female Sockets Crimp
