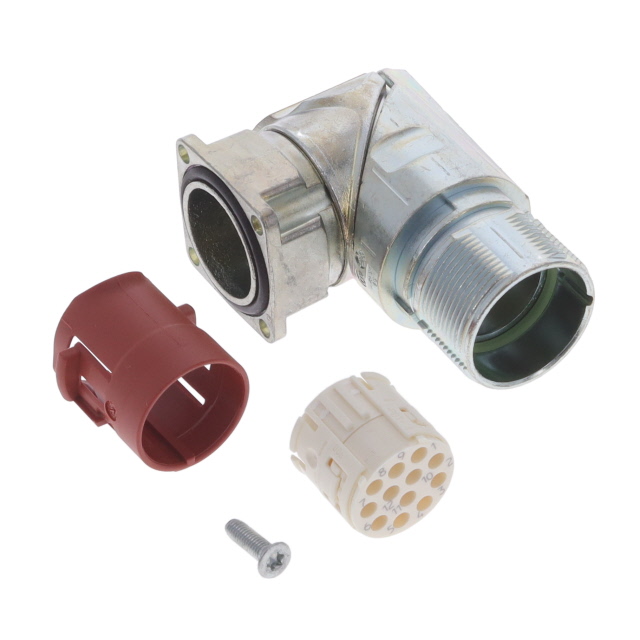

Specification	AGC175N00001215000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Rotatable, Backshell
Housing Color	Silver
Includes	Connector, O-Ring, Backshell
Includes Total Count	3 pcs
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Insert Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount, Right Angle
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Shell Finish	Chromate
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Shielding	Unshielded
Type	For Male Pins

AGC17 Series

Part	Features	Shell Material	Mounting Type	Includes Total Count	Includes	Number of Positions	Connector Type	Orientation	Mounting Feature	Shell Size - Insert	Material Flammability Rating	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)	Type	Shielding	Shell Finish	Note	Fastening Type	Insert Material	Contact Shape	Ingress Protection Description	Ingress Protection IP Rating
TE Intercontec AGC175N00001215000	Backshell Rotatable	Zinc Die Cast	Panel Mount Right Angle	3 pcs	Backshell Connector O-Ring	12	Receptacle Housing	Keyed	Flange	M23-12	UL94 V-0	Silver	-20 °C	130 °C	For Male Pins	Unshielded	Chromate	Contacts Not Included	Push-Twist	PBT Polybutylene Terephthalate	Circular	Dust Tight Water Resistant Waterproof	IP66 IP67
TE Intercontec AGC175N00001200000	Backshell Rotatable	Zinc Die Cast	Panel Mount Right Angle	3 pcs	Backshell Connector O-Ring	12	Receptacle Housing	Keyed	Flange	M23-12	UL94 V-0	Silver	-20 °C	130 °C	For Male Pins	Unshielded	Chromate	Contacts Not Included	Push-Twist	PBT Polybutylene Terephthalate	Circular	Dust Tight Water Resistant Waterproof	IP66 IP67
