ST2329BQTR
ObsoleteSTMicroelectronics

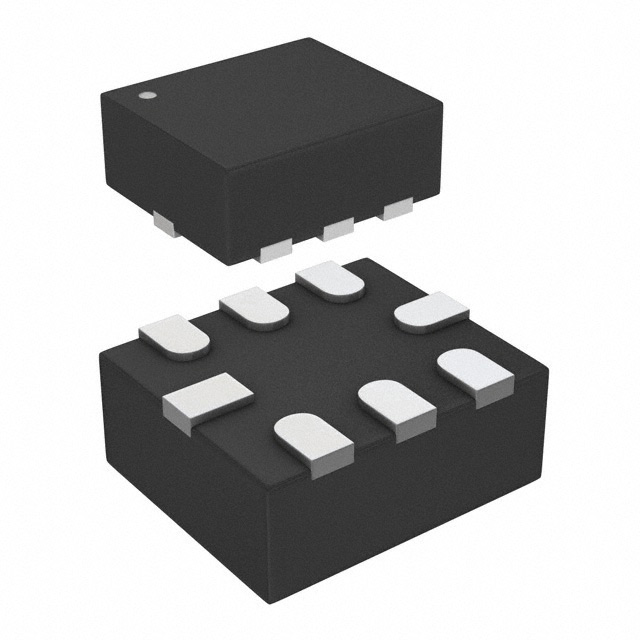

IC TRANSLTR BIDIRECTIONAL 8QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST2329BQTR
ObsoleteSTMicroelectronics
IC TRANSLTR BIDIRECTIONAL 8QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST2329BQTR |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 2 |
| Data Rate | 18 Mbps |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain, Tri-State |
| Package / Case | 8-UFQFN |
| Supplier Device Package | 8-QFN (1.4x1.2) |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V |
| Voltage - VCCA [Min] | 1.65 V |
| Voltage - VCCB [Max] | 5.5 V |
| Voltage - VCCB [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.13 | |
| 10 | $ 1.01 | |||
| 25 | $ 0.96 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.51 | |||
| Digi-ReelÛ | 1 | $ 1.13 | ||
| 10 | $ 1.01 | |||
| 25 | $ 0.96 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.51 | |||
| Tape & Reel (TR) | 3000 | $ 0.48 | ||
| 6000 | $ 0.45 | |||
| 15000 | $ 0.44 | |||
Description
General part information
ST2329 Series
Voltage Level Translator Bidirectional 1 Circuit 2 Channel 18Mbps 8-QFN (1.4x1.2)
