T740N26TOFXPSA1

Active

Infineon Technologies

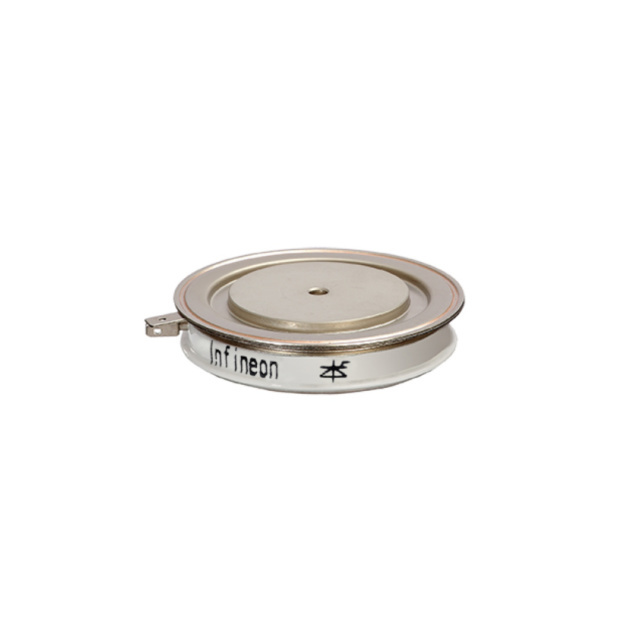

2600 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 58 MM DIA AND A HEIGHT OF 14 MM

Search across all available documentation for this part.

Active

Infineon Technologies

2600 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 58 MM DIA AND A HEIGHT OF 14 MM

Technical Specifications

Parameters and characteristics for this part

Specification	T740N26TOFXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	250 mA
Current - Hold (Ih) (Max) [Max]	300 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	13000 A
Current - On State (It (AV)) (Max) [Max]	745 A
Current - On State (It (RMS)) (Max) [Max]	1500 A
Mounting Type	Clamp On
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	B-PUK, DO-200AB
Structure	Single
Voltage - Gate Trigger (Vgt) (Max) [Max]	2.2 V
Voltage - Off State	2.6 kV

Part	Package / Case	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Number of SCRs, Diodes	Current - Hold (Ih) (Max) [Max]	Structure
Infineon Technologies T740N26TOFXPSA1	B-PUK DO-200AB	745 A	Clamp On	250 mA	125 °C	-40 °C	2.6 kV	1500 A	13000 A	2.2 V	1 SCR	300 mA	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phase ControlThyristor disc2600 V, 740 A with 58 mm diameter in a ceramic housing.
