ATA00H Series

Part	Mounting Type	Voltage - Output 1	Efficiency	Current - Output (Max)	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Isolation	Voltage - Input (Min)	Voltage - Input (Max)	Features	Power (Watts)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Package Leads	Package Name	Type	Number of Outputs
ARTESYN / Advanced Energy ATA00H36-L	Through Hole	24 V	80 %	125 mA	ITE (Commercial)	-40 °C	85 °C	1500 Vrns	18 V	75 V	OCP Remote On/Off SCP	3 W	0.31 in	0.94 in	0.54 in	7 Leads	16-DIP Module	Isolated Module	1

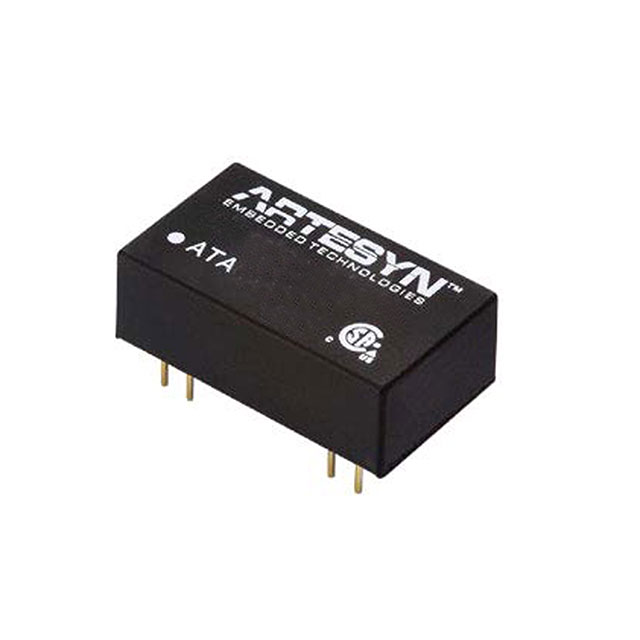

ARTESYN / Advanced Energy ATA00H18-L	Through Hole	24 V	80 %	125 mA	ITE (Commercial)	-40 °C	85 °C	1500 Vrns	9 V	36 V	OCP Remote On/Off SCP	3 W	0.31 in	0.94 in	0.54 in	7 Leads	16-DIP Module	Isolated Module	1
ARTESYN / Advanced Energy ATA00H36S-L	Surface Mount	24 V	80 %	125 mA	ITE (Commercial)	-40 °C	85 °C	1500 Vrns	18 V	75 V	OCP Remote On/Off SCP	3 W	0.31 in	0.94 in	0.54 in	7 Leads	16-SMD Module	Isolated Module	1
ARTESYN / Advanced Energy ATA00H18S-L	Surface Mount	24 V	80 %	125 mA	ITE (Commercial)	-40 °C	85 °C	1500 Vrns	9 V	36 V	OCP Remote On/Off SCP	3 W	0.31 in	0.94 in	0.54 in	7 Leads	16-SMD Module	Isolated Module	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
