SA52-11SURKWA

Active

Kingbright

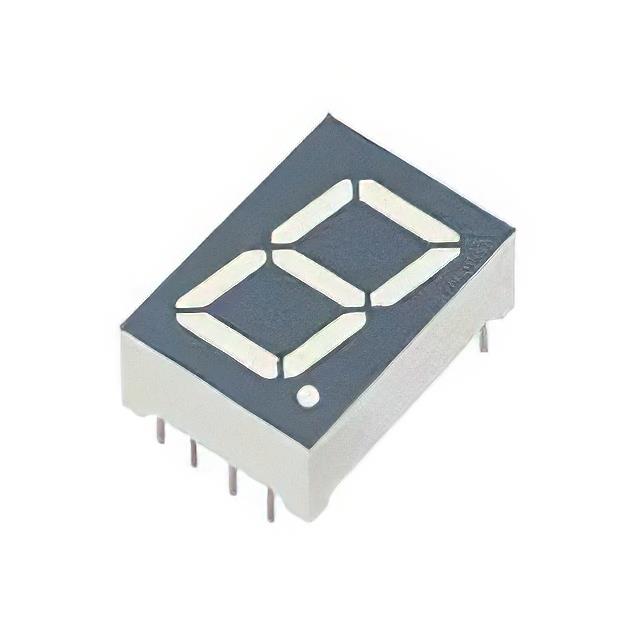

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, RED, 20 MA, 1.95 V, 110 MCD, 1, 13.2 MM

Find alt

Alpha

SA52-11SURKWA

Active

Kingbright

7 SEGMENT LED DISPLAY, MECHANICALLY RUGGED, RED, 20 MA, 1.95 V, 110 MCD, 1, 13.2 MM

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SA52-11 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.85V 10mA 0.689" H x 0.488" W x 0.285" D (17.50mm x 12.40mm x 7.25mm) 10-DIP (0.600", 15.24mm)

Technical Specifications

Parameters and characteristics for this part

Specification	SA52-11SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.52 in
Display Type	7-Segment
Millicandela Rating	110 mcd
Number of Characters	1
Package Length	0.6 in
Package Name	10-DIP
Power Dissipation (Max)	75 mw
Size / Dimension Depth	0.285 in
Size / Dimension Height	0.689 in
Size / Dimension Width	0.488 in
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	645 nm

SA52-11 Series

Part	Current - Test	Color	Millicandela Rating	Power Dissipation (Max)	Voltage - Forward (Vf) (Typ)	Package Length	Package Name	Number of Characters	Display Type	Common Pin	Size / Dimension Width	Size / Dimension Depth	Size / Dimension Height	Wavelength - Peak	Digit/Alpha Size
Kingbright SA52-11SURKWA	10 mA	Red	110 mcd	75 mw	1.85 V	0.6 in	10-DIP	1	7-Segment	Common Anode	0.488 in	0.285 in	0.689 in	645 nm	0.52 in
Kingbright SA52-11SRWA	20 mA	Red	34 mcd	75 mw	1.85 V	0.6 in	10-DIP	1	7-Segment	Common Anode	0.488 in	0.276 in	0.689 in	660 nm	0.52 in
Kingbright SA52-11EWA	20 mA	Red	6.4 mcd	75 mw	2 V	0.6 in	10-DIP	1	7-Segment	Common Anode	0.488 in	0.276 in	0.689 in	627 nm	0.52 in
Kingbright SA52-11GWA	20 mA	Green	10.5 mcd	62.5 mW	2.2 V	0.6 in	10-DIP	1	7-Segment	Common Anode	0.488 in	0.276 in	0.689 in	565 nm	0.52 in
