MCP121T-195I/LB

Active

Microchip Technology

1UA SUPERVISOR OPEN DRAIN ACTIVE LOW 3 SC70 T/R ROHS COMPLIANT: YES

Find alt

Alpha

MCP121T-195I/LB

Active

Microchip Technology

1UA SUPERVISOR OPEN DRAIN ACTIVE LOW 3 SC70 T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCP121 Series

The MCP121 Series of CMOS voltage detectors are well suited for many portable and consumer electrics applications due to the extremely low 1uA operating current and small surface-mount packaging. These devices are designed to hold the microcontroller in reset until the supply voltage reaches a predetermined operating level. These devices also protect against brownout conditions that occur as a result of the supply voltage dropping below a tolerable level.

Technical Specifications

Parameters and characteristics for this part

Specification	MCP121T-195I/LB

Mounting Type	Surface Mount
Number of Voltages Monitored	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output	Open Drain, Open Collector
Package / Case	SC-70, SOT-323

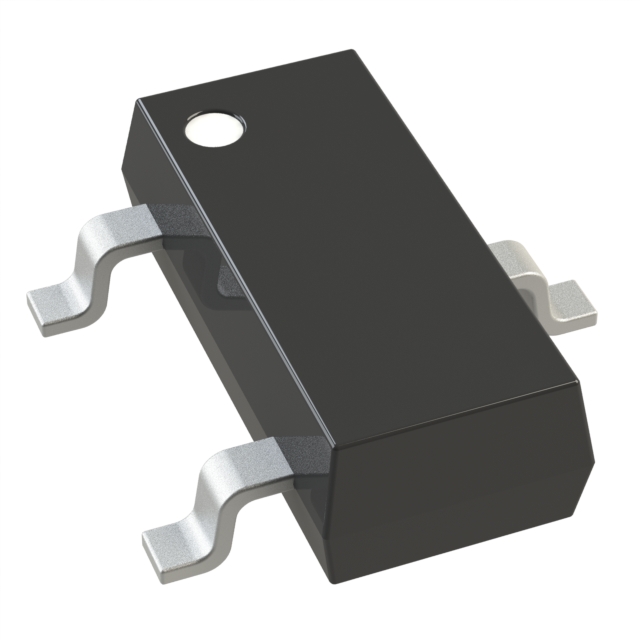

Package Name	SC-70-3
Reset	Active Low
Reset Timeout (Minimum)	80 ms
Type	Simple Reset/Power-On Reset
Voltage - Threshold	1.9 V

MCP121 Series

Part	Package / Case	Reset Timeout (Minimum)	Number of Voltages Monitored	Type	Output	Voltage - Threshold	Reset	Mounting Type	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Grade	Qualification
Microchip Technology MCP121-450E/TO	TO-226-3 TO-92-3 (TO-226AA)	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	4.38 V	Active Low	Through Hole	TO-92-3	125 °C	-40 °C
Microchip Technology MCP121T-195I/LB	SC-70 SOT-323	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	1.9 V	Active Low	Surface Mount	SC-70-3	85 °C	-40 °C
Microchip Technology MCP121T-300E/TT	SC-59 SOT-23-3 TO-236-3	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	2.93 V	Active Low	Surface Mount	SOT-23-3	125 °C	-40 °C
Microchip Technology MCP121-315E/TO	TO-226-3 TO-92-3 (TO-226AA)	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	3.08 V	Active Low	Through Hole	TO-92-3	125 °C	-40 °C
Microchip Technology MCP121T-315E/TTVAO	SC-59 SOT-23-3 TO-236-3	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	3.08 V	Active Low	Surface Mount	SOT-23-3	125 °C	-40 °C	Automotive	AEC-Q100
Microchip Technology MCP121T-450E/TT	SC-59 SOT-23-3 TO-236-3	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	4.38 V	Active Low	Surface Mount	SOT-23-3	125 °C	-40 °C
Microchip Technology MCP121-240E/TO	TO-226-3 TO-92-3 (TO-226AA)	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	2.32 V	Active Low	Through Hole	TO-92-3	125 °C	-40 °C
Microchip Technology MCP121T-300E/LB	SC-70 SOT-323	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	2.93 V	Active Low	Surface Mount	SC-70-3	125 °C	-40 °C
Microchip Technology MCP121T-315E/LB	SC-70 SOT-323	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	3.08 V	Active Low	Surface Mount	SC-70-3	125 °C	-40 °C
Microchip Technology MCP121T-270E/LB	SC-70 SOT-323	80 ms	1	Simple Reset/Power-On Reset	Open Collector Open Drain	2.63 V	Active Low	Surface Mount	SC-70-3	125 °C	-40 °C
