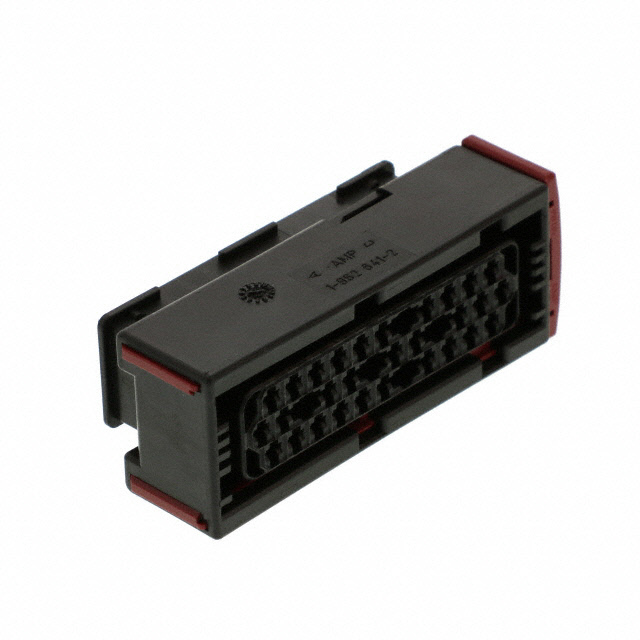

1-963449-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 29POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-963449-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 29POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-963449-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 29 |
| Number of Rows | 3 |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing | 5 mm |
| Row Spacing | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.55 | |
| 10 | $ 7.45 | |||
| 25 | $ 7.26 | |||
| 50 | $ 7.06 | |||
| 100 | $ 6.63 | |||
| 252 | $ 6.59 | |||
| 504 | $ 6.20 | |||
| 1008 | $ 5.53 | |||
963449 Series
CONN RCPT HSG 29POS 5.00MM
| Part | Mounting Type | Contact Type | Number of Rows | Connector Type | Number of Positions | Note | Color | Features | Insulation Material | Pitch [x] | Pitch [x] | Contact Termination | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-963449-2 | Free Hanging (In-Line) | Female Socket | 3 | Receptacle | 29 | Contacts Not Included | Black | Sealed | Polybutylene Terephthalate (PBT), Glass Filled | 5 mm | 0.197 in | Crimp | 5 mm | 0.197 in |
Description
General part information
963449 Series
29 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
