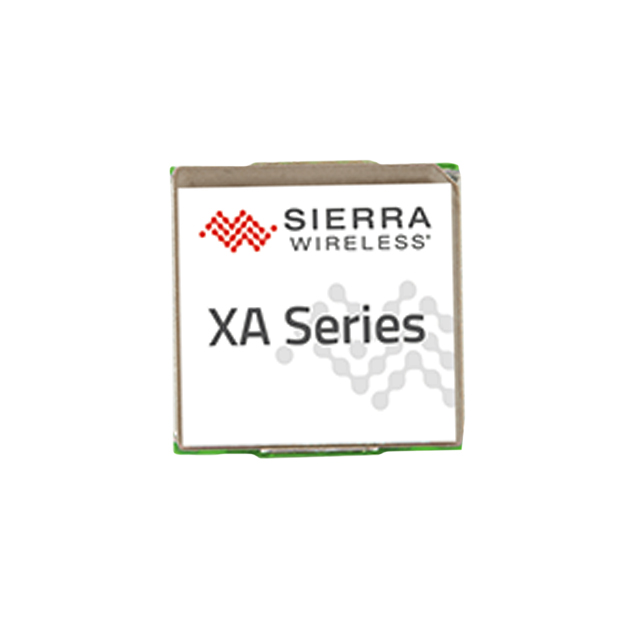

XA1110_1103891

Obsolete

Sierra Wireless

RF TXRX MODULE NAVIGATION SMD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MODULE NAVIGATION SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Navigation GPS, GLONASS Transceiver Module 1.598GHz ~ 1.575GHz, 1.605GHz Antenna Not Included Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XA1110_1103891	XA1110 Series

Antenna Connector	-	Castellation
Antenna Type	Antenna Not Included	Antenna Not Included
Applications	-	General Purpose
Current - Receiving	-	28 mA
Data Interface	-	SPI, UART
Data Rate	9.6 kbps	9.6 kbps
For Use With/Related Products	-	XA1110, MT3333
Frequency	1.605 GHz	1.575 - 1.605 GHz
Frequency [Max]	1.598 GHz	1.598 - 1.605 GHz
Frequency [Min]	1575 MHz	1.598 - 1575 GHz
Modulation or Protocol	-	GLONASS, GPS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Protocol	GPS, GLONASS	GPS, GLONASS
RF Family/Standard	Navigation	Navigation
Sensitivity	-165 dBm	-165 dBm
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Supplied Contents	-	Board(s)
Supplier Device Package	-	Module
Type	-	GPS, GLONASS, Beidou, GNSS
Utilized IC / Part	MT3333	MT3333
Voltage - Supply [Max]	4.3 V	4.3 V
Voltage - Supply [Min]	3 V	3 V

XA1110 AIRPRIME DEV KIT

Part	For Use With/Related Products	Supplied Contents	Type	Supplier Device Package	Sensitivity	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Min]	Frequency	Frequency [Max]	Antenna Connector	Data Interface	Applications	Modulation or Protocol	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	RF Family/Standard	Serial Interfaces	Protocol	Antenna Type	Data Rate	Utilized IC / Part
Sierra Wireless XA1110 DEV KIT_6001188	MT3333, XA1110	Board(s)	Beidou, GLONASS, GNSS, GPS
Sierra Wireless XA1110_1103608				Module	-165 dBm	Surface Mount	4.3 V	3 V	1.598 GHz	1.575 GHz	1.605 GHz	Castellation	SPI, UART	General Purpose	GLONASS, GPS	Module	85 °C	-40 °C	28 mA
Sierra Wireless XA1110_1103891					-165 dBm	Surface Mount	4.3 V	3 V	1575 MHz	1.605 GHz	1.598 GHz					Module	85 °C	-40 °C		Navigation	I2C, SPI, UART	GLONASS, GPS	Antenna Not Included	9.6 kbps	MT3333
