PBC17SBCN

Active

Sullins Connector Solutions

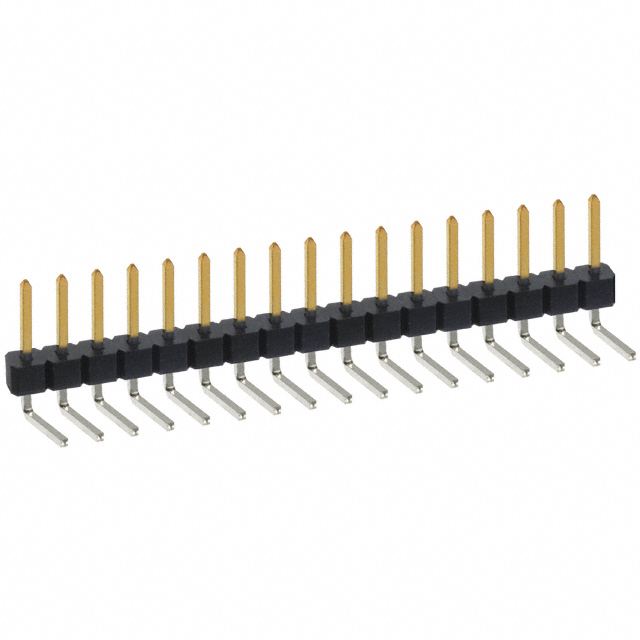

CONN HEADER R/A 17POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC17SBCN

Active

Sullins Connector Solutions

CONN HEADER R/A 17POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC17SBCN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	7.62 mm
Contact Length - Post [x]	0.3 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC17 Series

Part	Number of Rows	Contact Shape	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Material	Termination	Contact Material	Insulation Color	Shrouding	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PBC17DBAN	2	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	34	Breakaway Header	3 A	10 in	0.25 m	UL94 V-0	2.54 mm	0.1 in	Tin	-65 ░C	125 °C	Gold	Through Hole Right Angle	All	0.23 in	5.84 mm	0.24 in	6.1 mm	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 m	100 in
Sullins Connector Solutions PBC17SBDN	1	Square	Push-Pull	Male Pin	0.1 in	2.54 mm		Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0			Tin	-65 ░C	125 °C	Gold	Through Hole Right Angle	All	0.23 in	5.84 mm	0.14 in	3.56 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.4 in	10.16 mm
Sullins Connector Solutions PBC17SACN	1	Square	Push-Pull	Male Pin	0.1 in	2.54 mm		Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0			Tin	-65 ░C	125 °C	Gold	Through Hole	All	0.23 in	5.84 mm	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.32 in	8.13 mm	16.51 mm	0.65 in
Sullins Connector Solutions PBC17DFAN	2	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	34	Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0	2.54 mm	0.1 in	Tin	-65 ░C	125 °C	Gold	Through Hole	All	0.318 "		0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.12 in	3.05 mm		13.67 mm	0.538 "	8.08 mm
Sullins Connector Solutions PBC17DFDN	2	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	34	Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0	2.54 mm	0.1 in	Tin	-65 ░C	125 °C	Gold	Through Hole	All	0.318 "		0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.42 in	10.67 mm		21.29 mm	0.838 in	8.08 mm
Sullins Connector Solutions PBC17SAHN	1	Square	Push-Pull	Male Pin	0.1 in	2.54 mm		Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0			Tin	-65 ░C	125 °C	Gold	Through Hole	All	0.23 in	5.84 mm	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.82 in	20.83 mm		29.21 mm	1.15 in
Sullins Connector Solutions PBC17SBCN	1	Square	Push-Pull	Male Pin	0.1 in	2.54 mm		Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0			Tin	-65 ░C	125 °C	Gold	Through Hole Right Angle	All	0.23 in	5.84 mm	0.14 in	3.56 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.3 "	7.62 mm
Sullins Connector Solutions PBC17DAAN	2	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	34	Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0	2.54 mm	0.1 in	Tin	-65 ░C	125 °C	Gold	Through Hole	All	0.23 in	5.84 mm	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.12 in	3.05 mm		11.43 mm	0.45 "
Sullins Connector Solutions PBC17SBBN	1	Square	Push-Pull	Male Pin	0.1 in	2.54 mm		Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0			Tin	-65 ░C	125 °C	Gold	Through Hole Right Angle	All	0.23 in	5.84 mm	0.14 in	3.56 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.2 in	5.08 mm
Sullins Connector Solutions PBC17DACN	2	Square	Push-Pull	Male Pin	0.1 in	2.54 mm	34	Breakaway Header	3 A	10 çin	0.25 çm	UL94 V-0	2.54 mm	0.1 in	Tin	-65 ░C	125 °C	Gold	Through Hole	All	0.23 in	5.84 mm	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	Solder	Phosphor Bronze	Black	Unshrouded	Board to Board Cable	2.54 µm	100 µin	0.32 in	8.13 mm	16.51 mm	0.65 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.02
		10	$ 1.75
		100	$ 1.57
		500	$ 1.31
		1000	$ 1.12
		5000	$ 1.07

Description

General part information

PBC17 Series

Connector Header Through Hole, Right Angle 17 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
