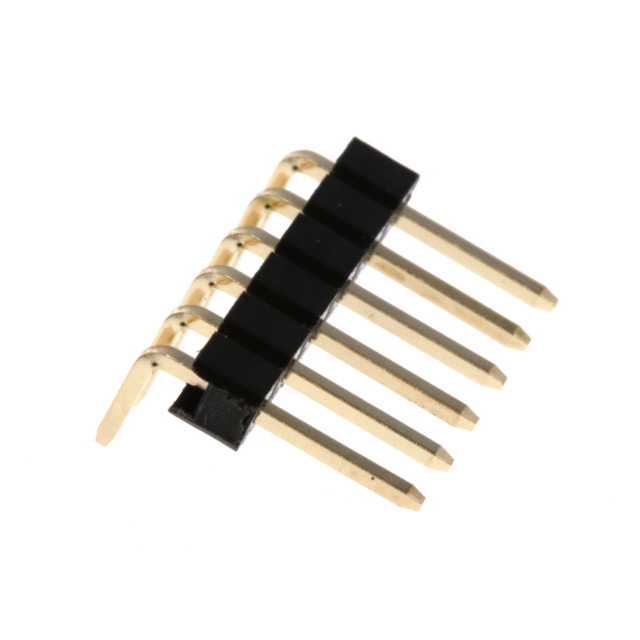

PR20206HBNN

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, SINGLE ROW, .10

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

PIN HEADER, THR, SINGLE ROW, .10

Technical Specifications

Parameters and characteristics for this part

Specification	PR20206HBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polyethylene
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Mounting Type	Number of Rows	Shrouding	Number of Positions	Fastening Type	Number of Positions Loaded	Contact Shape	Connector Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Type	Contact Material	Insulation Height [z]	Insulation Height [z]	Insulation Material	Contact Length - Post	Contact Length - Post
METZ CONNECT USA Inc. PR20206HBNN	Through Hole Right Angle	1	Unshrouded	6	Push-Pull	All	Square	Header	Gold	6 mm	0.236 in	Solder	0.1 in	2.54 mm	Black	-40 °C	105 ░C	Flash	Male Pin	Copper Zinc	0.098 in	2.5 mm	Polyethylene	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
