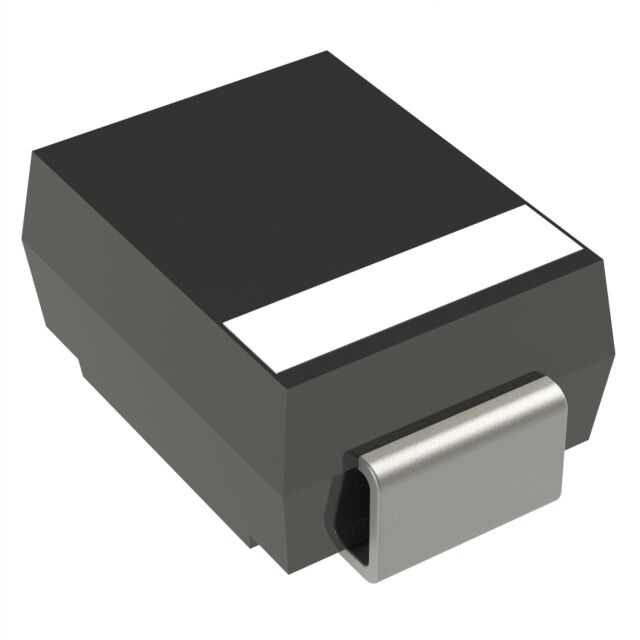

SMCJ78CA
ActiveBourns Inc.
11.9A 126V 1.5KW 86.7V BIDIRECTIONAL 78V DO-214AB(SMC) ESD AND SURGE PROTECTION (TVS/ESD) ROHS
Deep-Dive with AI
Search across all available documentation for this part.
SMCJ78CA
ActiveBourns Inc.
11.9A 126V 1.5KW 86.7V BIDIRECTIONAL 78V DO-214AB(SMC) ESD AND SURGE PROTECTION (TVS/ESD) ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMCJ78CA |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 11.9 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | DO-214AB (SMC) |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 86.7 V |
| Voltage - Clamping (Max) @ Ipp | 126 V |
| Voltage - Reverse Standoff (Typ) | 78 V |
