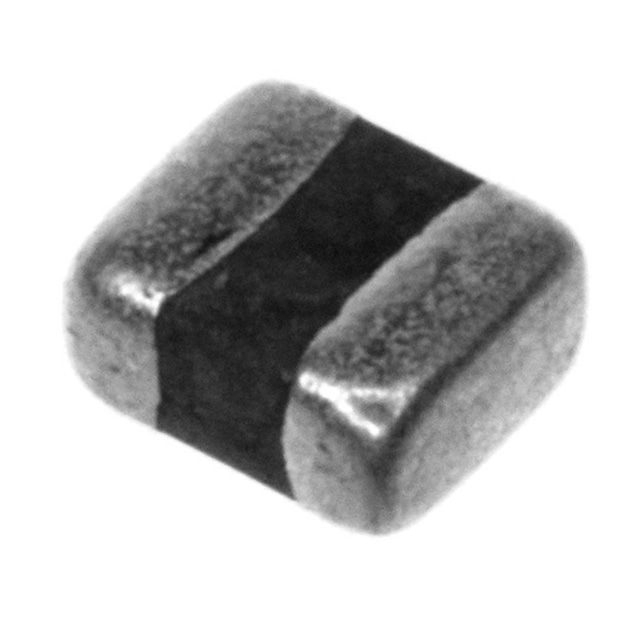

VG121018J400DP

Active

KYOCERA AVX

VARISTOR 25.5V 500A 1210

Search across all available documentation for this part.

Active

KYOCERA AVX

VARISTOR 25.5V 500A 1210

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25.5 V 500 A Varistor 1 Circuit Surface Mount 1210 (3225 Metric)

Technical documentation and resources

Specification	VG121018J400DP	VG1210 Series

Capacitance @ Frequency	3100 pF	500 - 3100 pF
Current - Surge	500 A	250 - 500 A
Energy	1.6 J	1.2 - 2.7 J
Maximum AC Volts [Max]	13 V	13 - 50 V
Maximum DC Volts [Max]	18 V	18 - 65 V
Mounting Type	Surface Mount	Surface Mount, Surface Mount, MLCV
Number of Circuits	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1210	1210
Package / Case	3225 Metric	3225 Metric
Varistor Voltage (Max)	-	37.95 - 90.2 V
Varistor Voltage (Min) [Min]	22.95 V	22.95 - 73.8 V
Varistor Voltage (Typ)	25.5 V	25.5 - 82 V

Part	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Energy	Current - Surge	Number of Circuits	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Mounting Type	Package / Case	Package / Case	Varistor Voltage (Max) [Max]
KYOCERA AVX VG121018J400DP	22.95 V	3100 pF	125 °C	-55 °C	25.5 V	1.6 J	500 A	1	18 V	13 V	Surface Mount	1210	3225 Metric
KYOCERA AVX VG121065P131DP	73.8 V	600 pF	125 °C	-55 °C	82 V	2.7 J		1	65 V	50 V	Surface Mount, MLCV	1210	3225 Metric	90.2 V
KYOCERA AVX VG121026H560DP	31.05 V	1200 pF	125 °C	-55 °C	34.5 V	1.2 J	300 A	1	26 V	18 V	Surface Mount	1210	3225 Metric	37.95 V
KYOCERA AVX VG121048H101DP	55.8 V	500 pF	125 °C	-55 °C	62 V	1.2 J	250 A	1	48 V	34 V	Surface Mount	1210	3225 Metric	68.2 V
