PT61018AAPEL

Unknown

Bourns Inc.

LAN 10/100 BASE T XFORMER AECQ +

Search across all available documentation for this part.

Unknown

Bourns Inc.

LAN 10/100 BASE T XFORMER AECQ +

Technical Specifications

Parameters and characteristics for this part

Specification	PT61018AAPEL

Grade	Automotive
Height - Seated (Max) [Max] [z]	5.9 mm
Height - Seated (Max) [Max] [z]	0.232 "
Inductance	350 µH
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Qualification	AEC-Q200
Size / Dimension [x]	12.8 mm
Size / Dimension [x]	0.504 "
Size / Dimension [y]	0.272 "
Size / Dimension [y]	6.9 mm
Transformer Type	LAN 10/100 Base-T
Turns Ratio - Primary:Secondary [custom]	1CT
Turns Ratio - Primary:Secondary [custom]	1CT

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Transformer Type	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Grade	Qualification
Bourns Inc. PT61018PEL	0.272 "	12.8 mm	6.9 mm	0.504 "	350 µH	Surface Mount	5.65 mm	0.222 "	85 °C	-40 °C	LAN 10/100 Base-T	1CT	1CT
Bourns Inc. PT61018AAPEL	0.272 "	12.8 mm	6.9 mm	0.504 "	350 µH	Surface Mount			85 °C	-40 °C	LAN 10/100 Base-T	1CT	1CT	5.9 mm	0.232 "	Automotive	AEC-Q200
Bourns Inc. PT61017PEL	0.272 "	12.8 mm	6.9 mm	0.504 "	350 µH	Surface Mount	5.65 mm	0.222 "	70 °C	0 °C	LAN 10/100 Base-T	1CT	1CT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

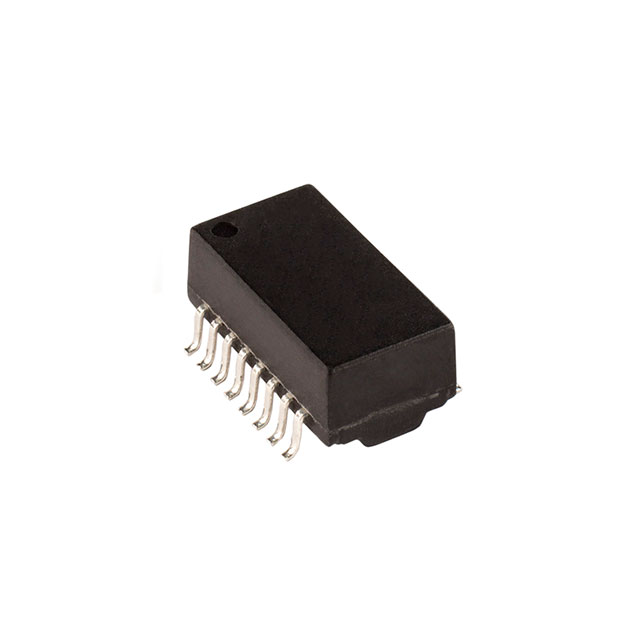

350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
