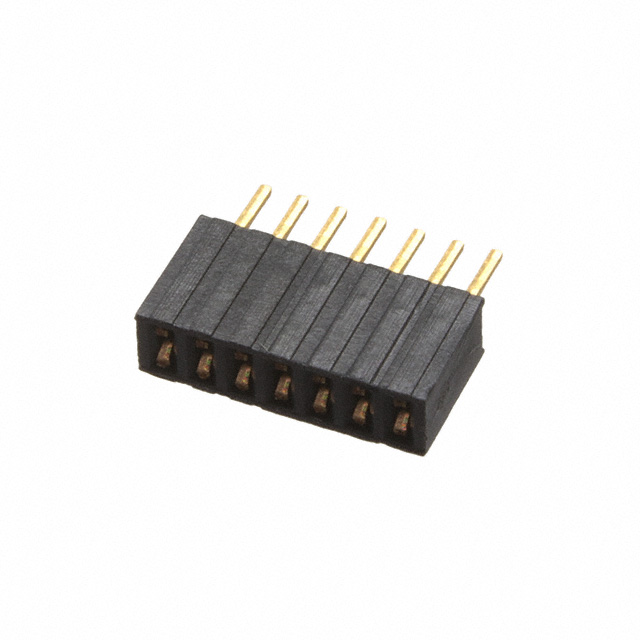

Specification	HRS-1B-07-GA

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Length - Post	0.118 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Current Rating	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.181 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.05 in
Style	Board
Termination	Solder
Voltage Rating	250 V

HRS-1B Series

Part	Voltage Rating	Contact Finish Thickness - Mating	Current Rating	Material Flammability Rating	Number of Positions	Style	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Insulation Height	Contact Length - Post	Contact Finish - Mating	Contact Type	Fastening Type	Termination	Pitch - Mating	Contact Finish - Post	Insulation Color	Connector Type	Number of Positions Loaded	Mounting Type	Insulation Material	Contact Material	Applications	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
Adam Tech HRS-1B-06-GA	250 V	Flash	1 A	UL94 V-0	6	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-15-GA	250 V	Flash	1 A	UL94 V-0	15	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-14-GA	250 V	Flash	1 A	UL94 V-0	14	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-07-GA	250 V	Flash	1 A	UL94 V-0	7	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-03-GA	250 V	Flash	1 A	UL94 V-0	3	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-05-GA	250 V	Flash	1 A	UL94 V-0	5	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-18-GA	250 V	Flash	1 A	UL94 V-0	18	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-20-GA	250 V	Flash	1 A	UL94 V-0	20	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-21-GA	250 V	Flash	1 A	UL94 V-0	21	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
Adam Tech HRS-1B-12-GA	250 V	Flash	1 A	UL94 V-0	12	Board	-40 °C	105 °C	1	0.181 in	0.118 in	Gold	Forked	Push-Pull	Solder	0.05 in	Gold	Black	Receptacle	All	Through Hole	Thermoplastic	Phosphor Bronze	General Purpose	Rectangular	Flash	Flash
