QFT3-130/42-0-B500

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRNK BOOT TRANS CONFG 500PC

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRNK BOOT TRANS CONFG 500PC

Technical Specifications

Parameters and characteristics for this part

Specification	QFT3-130/42-0-B500

Color	Black
Features	Watertight, Clips Included, Adhesive Coating, Corrosion Resistant
Large Diameter Recovered [diameter]	0.945 in
Large Diameter Recovered [diameter]	24 mm
Large Diameter Supplied [diameter]	2.244 in
Large Diameter Supplied [diameter]	57 mm
Large Recovered Length	35 mm
Large Recovered Length	1.378 in
Material	Polyolefin (PO), Flexible
Small Diameter Recovered [diameter]	0.472 "
Small Diameter Recovered [diameter]	11.99 mm
Small Diameter Supplied [diameter]	2.244 in
Small Diameter Supplied [diameter]	57 mm
Small Recovered Length	24.99 mm
Small Recovered Length [x]	0.984 in
Total Length Recovered	3.543 "
Total Length Recovered	89.99 mm
Type	Boot, Transition - Configurable

HEATSHRNK BOOT TRANS CONFG 500PC

Part	Large Recovered Length	Large Recovered Length	Small Recovered Length	Small Recovered Length [x]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Type	Material	Total Length Recovered	Total Length Recovered	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Features	Color
TE Connectivity Aerospace, Defense and Marine QFT3-130/42-0-B500	35 mm	1.378 in	24.99 mm	0.984 in	0.472 "	11.99 mm	0.945 in	24 mm	2.244 in	57 mm	Boot, Transition - Configurable	Polyolefin (PO), Flexible	3.543 "	89.99 mm	2.244 in	57 mm	Adhesive Coating, Clips Included, Corrosion Resistant, Watertight	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 16.74

General part information

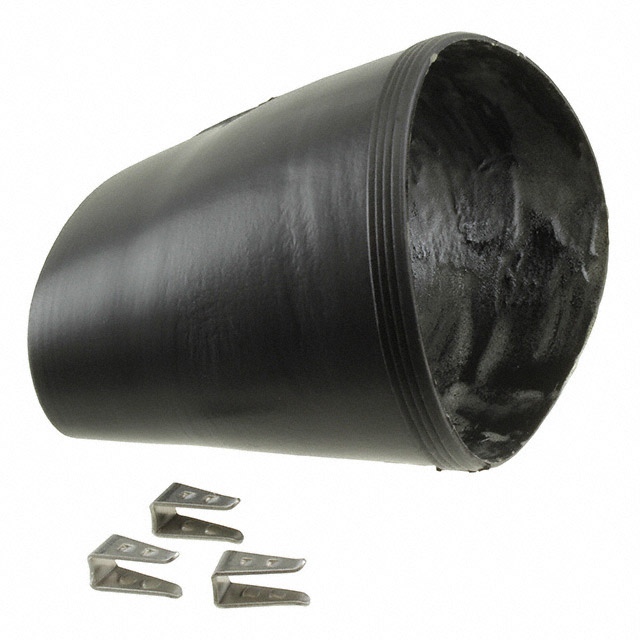

Heat Shrink Boot, Transition - Configurable Black
