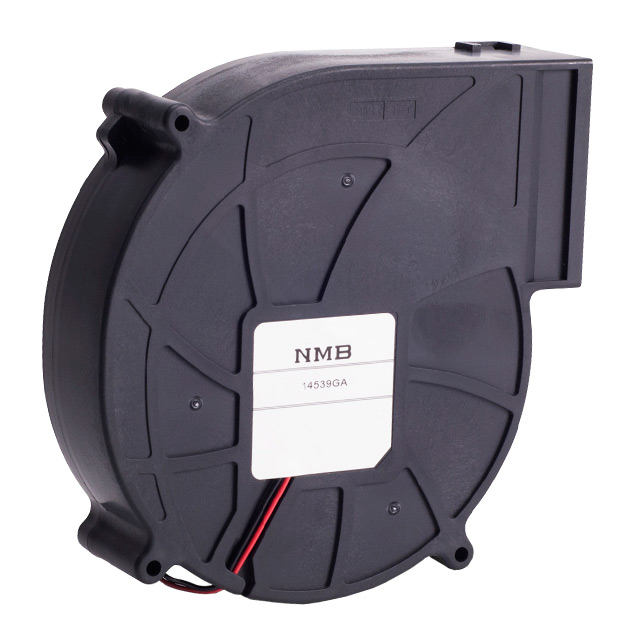

FAN BLOWER, 145MM, 15W, 12 ROHS COMPLIANT: YES
14539GA-12N-AA-00
ActiveNMB TECHNOLOGIES
FAN BLOWER, 145MM, 15W, 12 ROHS COMPLIANT: YES
Description
General part information
14539GA Series
Fan Blower 12VDC Square/Rounded - 145mm L x 145mm H Ball 51.2 CFM (1.43m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 14539GA-12N-AA-00 |
|---|---|
| Air Flow | 51.2 CFM |
| Bearing Type | Ball |
| Current Rating | 1.25 A |
| Fan Type | Blower |
| Features | Auto Restart |
| Lifetime | 100000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 54.5 dB |
| Operating Temperature (Max) | 140 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 15 W |
| RPM | 2450 RPM |
| Size / Dimension Height | 145 mm |
| Size / Dimension Length | 145 mm |
| Size / Dimension Shape | Square/Rounded |
| Static Pressure | 1.55 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.2 VDC |
| Voltage Range (Min) | 8 V |
| Width | 39 mm |
