Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-MKIT02V1 | STEVAL-MKIT02V1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Magnetometer, Gyroscope, Accelerometer | Magnetometer, Gyroscope, Accelerometer |
| Interconnect System | DIL24 | DIL24 |
| Platform | Professional MEMS Tool | Professional MEMS Tool |
| Suggested Programming Environment | Unico | Unico |
| Type | Sensor | Sensor |
| Utilized IC / Part | ISM330DLC, IIS2MDC, IIS2DH, IIS3DHHC | ISM330DLC, IIS2MDC, IIS2DH, IIS3DHHC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.59 | |
STEVAL-MKIT02V1 Series
Industrial MEMS sensors sample kit
| Part | Type | Suggested Programming Environment | Platform | Function | Contents | Interconnect System | Utilized IC / Part |
|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-MKIT02V1 | |||||||
STMicroelectronics STEVAL-MKIT02V1 | Sensor | Unico | Professional MEMS Tool | Accelerometer, Gyroscope, Magnetometer | Board(s) | DIL24 | IIS2DH, IIS2MDC, IIS3DHHC, ISM330DLC |
Description
General part information
STEVAL-MKIT02V1 Series

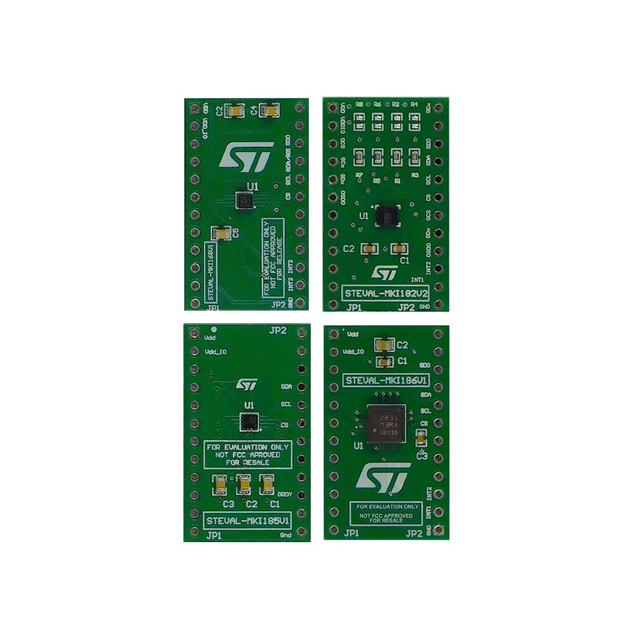

The STEVAL-MKIT02V1 is a MEMS sensor sample kit containing four sensor adapter boards that can be evaluated in standalone mode by simply connecting an I²C cable (except for the STEVAL-MKI186V1 and the IIS3DHHC where only the SPI connector is present).
The STEVAL-MKI109V3 evaluation board, based on the STM32F401VET6 microcontroller, can be used for a more in-depth evaluation, as a bridge between the sensor adapter boards and a PC running STMicroelectronics graphical user interface (GUI) or an X-NUCLEO expansion board.
