5535651-6
ActiveTE Connectivity AMP Connectors

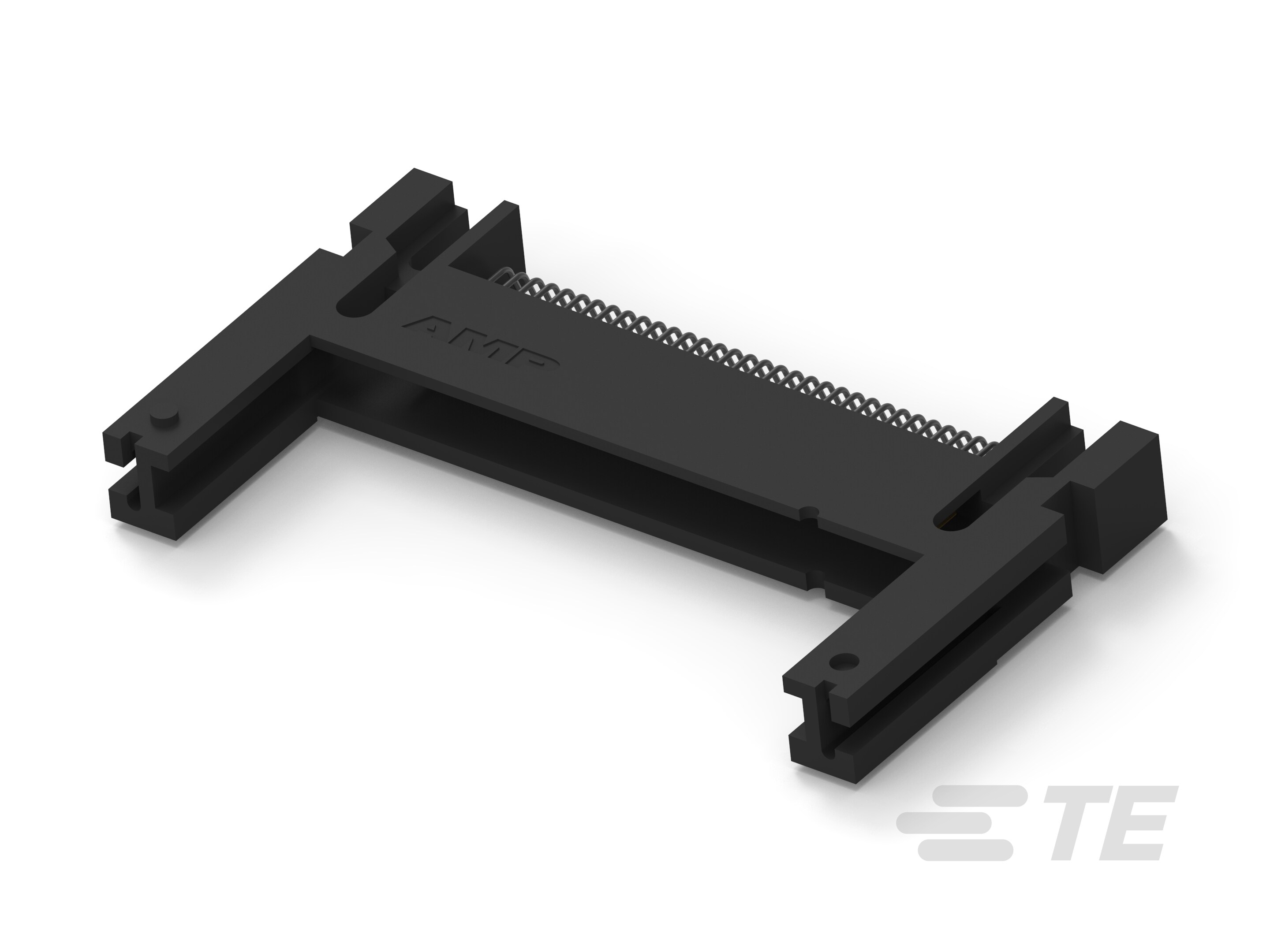

68 MEMCD HDR STD SMT TOP LV, N
5535651-6
ActiveTE Connectivity AMP Connectors
68 MEMCD HDR STD SMT TOP LV, N
Description
General part information
5535651 Series
Fully Shrouded, Cable-to-Board, 68 Position, 1.27 mm [.05 in] Centerline, 2 Row, 1 Card Slots, Surface Mount, RAYCHEM STSS, PCMCIA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 5535651-6 |
|---|---|
| Card Type | PCMCIA |
| Connector Type | Connector |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Guide |
| Height Above Board | 0.275 in |
| Insertion, Removal Method | Push In, Pull Out |
| Mounting Feature | Top, Normal, Standard |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 68 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
