3667-0-19-01-23-27-10-0
ActiveMill-Max Manufacturing Corp.

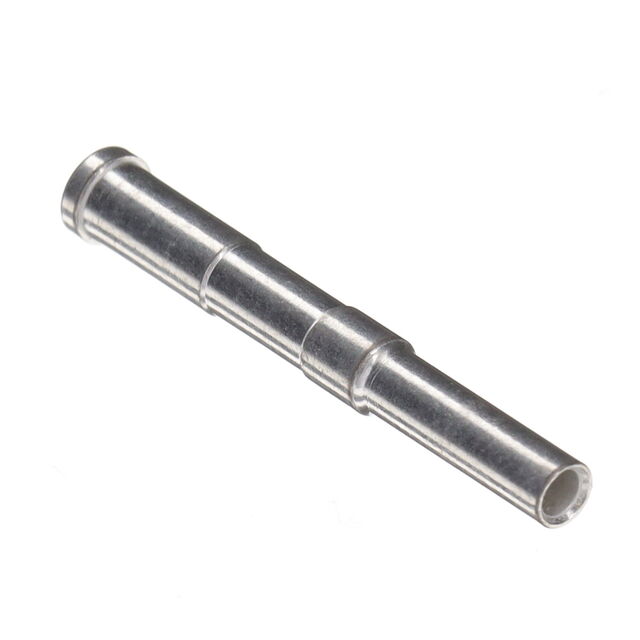

CONN RECEPT PIN .045-.065" .875"
Deep-Dive with AI
Search across all available documentation for this part.
3667-0-19-01-23-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN RECEPT PIN .045-.065" .875"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3667-0-19-01-23-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.065 in |
| Accepts Pin Diameter [Max] | 1.65 mm |
| Accepts Pin Diameter [Min] | 0.045 in |
| Accepts Pin Diameter [Min] | 1.14 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 3.18 mm |
| Flange Diameter [diameter] | 0.125 in |
| Length - Overall [x] | 0.875 in |
| Length - Overall [x] | 22.23 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Socket Depth | 12.32 mm |
| Socket Depth | 0.485 in |
| Tail Type | Crimp |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.46 | |
| 10 | $ 2.14 | |||
| 25 | $ 2.05 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.91 | |||
| 250 | $ 1.73 | |||
| 500 | $ 1.59 | |||
| 1000 | $ 1.37 | |||
| 3000 | $ 1.27 | |||
Description
General part information
3667-0 Series
Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Crimp Solder
